Customized H Type Boiler Fin Tube For Heat Exchanger Carbon / Stainless
Customized ASME Standard H Type Boiler Fin Tubes For Heat Exchanger
Features:
H Fin Tube is formed on both sides of the straight channel, can achieve good blowing effect. The space is compact. the overall weignt is reduced areatlv. reduce cost: H type fin can flow space utilization effectively keen the fin area and fin is larger than the thickness of the fin: can choose according to need any abrasion; fins are parallel to each other and independent, no effect of helix angle. which is convenient to ash."H" TYPE Finned tube can not only improve the windward side near the staanation point speed increase the axial puraina.can increasethe leeward surface reflux disturbance again. The velocity distribution characteristics make H finned tubes is not easy to dust.
Product Description

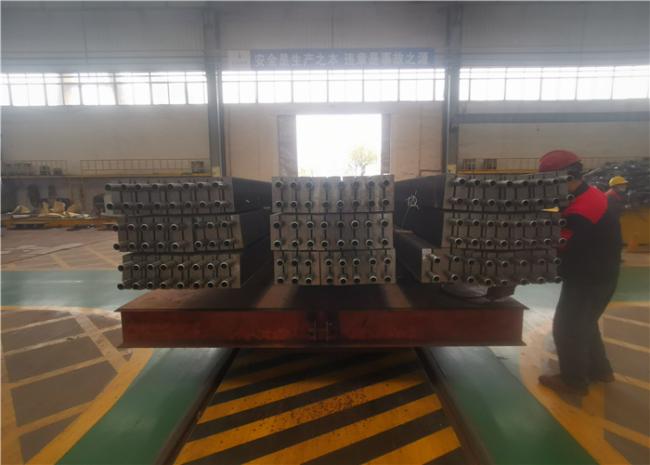

H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer, which has high efficiency,little resistance,less wear and light weight.
Parameter
| Product | H-fin Tube |
| Base Pipe | Welded or Seamless |
| Material | carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys. |
| Application | H economizer,H evaporator,H superheater,H air heater and etc. |
| D | L(max) | L2(min) | h | w | c | t | td | p |
|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 31,8 | 16000 | 100 | 125 | 27 | 6 | 2 + 2,5 | 65 | 9 – 40 |
| 31,8 | 16000 | 100 | 145 | 32 | 6 | 2 + 2,5 | 75 | 9 – 40 |
| 31,8 | 16000 | 100 | 150 | 32 | 6 | 2 + 2,5 | 80 | 9 – 40 |
| 33,7 | 16000 | 100 | 145 | 32 | 6 | 2 + 2,5 | 75 | 9 – 40 |
| 38,0 | 16000 | 100 | 195 | 42,5 | 10 | 2 + 2,5 | 100 | 9 – 40 |
| 38,0 | 16000 | 100 | 145 | 32 | 6 | 2 + 2,5 | 75 | 9 – 40 |
| 38,0 | 16000 | 100 | 180 | 40 | 10 | 2 + 2,5 | 92 | 9 – 40 |
| 42,4 | 16000 | 100 | 235 | 52,5 | 10 | 2 + 2,5 | 120 | 9 – 40 |
| 44,5 | 16000 | 100 | 215 | 50 | 10 | 2 + 2,5 | 110 | 9 – 40 |
| 44,5 | 16000 | 100 | 176 | 39 | 10 | 2 + 2,5 | 90 | 9 – 40 |
| 44,5 | 16000 | 100 | 196 | 45 | 6 | 2 + 2,5 | 100 | 9 – 40 |
| 48,3 | 16000 | 100 | 195 | 42,5 | 10 | 2 + 2,5 | 100 | 9 – 40 |
Certifications
Company Information
HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
