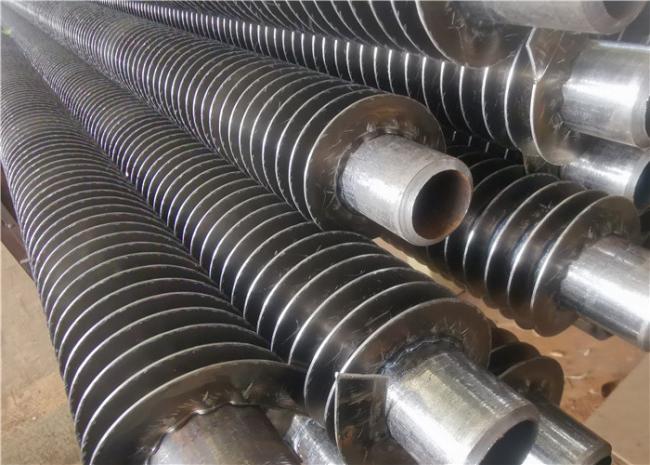

Stainless Steel Winding Finned Tube Heat Exchanger Boiler Parts for Coal-fired Boilers
Stainless Steel Winding Finned Tube Heat Exchanger Boiler Parts for Coal-fired Boilers
Detailed description:
Finned tube as a heat exchange element, long-term work in high-temperature flue gas conditions, such as boiler heat exchanger finned tube use environment is bad, high temperature and pressure and in a corrosive atmosphere, which requires finned tube should have a high performance index.
1) Corrosion resistance
2) Wear resistance
3) Low contact thermal resistance
4) High stability
5) Dust prevention capacity
The outer diameter of the base tube of this specification is from Φ 18mm to Φ 38mm, the outer diameter of the fin is from Φ 44mm to Φ 57mm, the length is from 300mm to 12000mm, and the fin spacing is from 2.5mm to 5mm.
All types of fin tube we could supply are shown as below:
| PRODUCT | TYPE | TUBE MATERIAL | FIN MATERIAL | TUBE SIZE | FIN SIZE |
| Heat Exchanger Finned Tube | Extruded Fin Tube | All Kind of Material can be applied | Aluminum A1100 | 15.88~50.8 | 7~11.5FPI |
| Fin Height Max 16mmH | |||||
| L-Foot Fin Tube | All Kind of Material can be applied | Copper C1100, C1220 | 12.70~50.8 | 7~11.5FPI | |
| (Wrap On Type) | Fin Height Max 16mmH | ||||
| G-Fin Tube (Embedded Type) | Aluminum A1100, A1050, A1060 | ||||
| High Frequency Welded Finned Tube | A179 Carbon Steel Tube | Carbon Steel Tube | 12.70~160 | 1.5~7FPI | |
| Stainless Steel Tube | Stainless Steel Tube | 0.8~3.2mm. Thickness | |||
| Alloy Steel Material | Alloy Steel Material | ||||
| Integral Copper & Copper Alloy High Finned Tube | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88~22.23 | 5~9FPI | |
| Max 12mm. H | |||||
| Oval Finned Tube | Carbon Steel Tube | Carbon Steel Tube | All Size Available | 5~15FPI | |
| Stainless Steel Tube | Stainless Steel Tube | ||||
| Alloy Steel Material | Alloy Steel Material | ||||
| Copper & Copper Alloy Tube | Copper & Copper Alloy Tube | ||||
| Monometallic Fin Tube | Low Fin Tube | Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. | -- | 9.52~40 | 12, 16, 19 28 FPI, etc. |
| Turbo-C Tube | |||||
| Turbo-E Tube | |||||
| Corrugated Tube | All Kind of Material | -- | 6.35~40 | 2~9FPI |
