9155748 9149237 Excavator Final Drive Applied To Hitachi EX300-5 EX350-5 Travel Device
- 9155748 9149237 Excavator Final Drive Applied To Hitachi EX300-5 EX350-5 Travel Device
- Spec Sheet
| Excavator spare parts name | Travel reduction gear |
| Equipment Model | EX300-5 EX350-5 |
| Parts egory | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR EX270-5 . EX280H-5 . EX300-5 . EX300LC-5M . EX300LCLL-5 . EX300LCLL-5M . EX345USR(LC) . EX350H-5 . EX350K-5 . EX370-5M . EX370HD-5 . EX370LL-5M . EX385USR . Hitachi

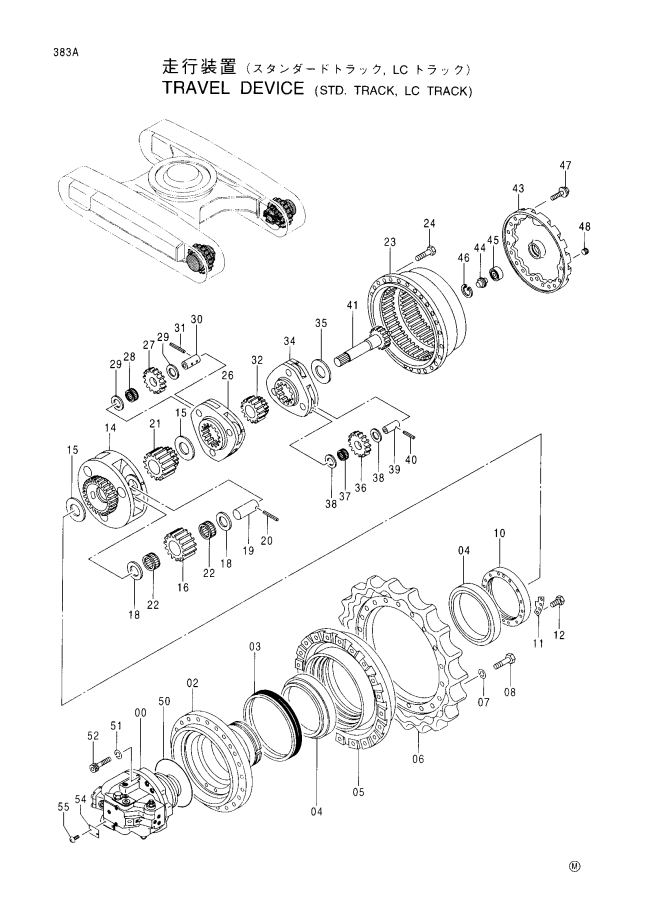

- Parts Diagram
ENTIRE GROUP TRAVEL DEVICE <STD. TRACK><LC TRACK>:
TRAVEL DEVICE ASS'Y <for transportation>
9149237 I[2] -
TRAVEL DEVICE ASS'Y 9155748 <for assembly of machine>
00.(9155694)[1] -
MOTOR;OIL <for transportation>
00.9149125 I[1] -
MOTOR;OIL 9155694 <for assembly of machine>
02.1022194[1] -
HOUSING
03.4066695[1] -
SEAL;GROUP
04.4192975[2] -
BRG.;ROL.
05.1022179[1] -
DRUM
06.1022168[1] -
SPROCKET
07.A590920[20] -
WASHER;SPRING
08.J932060[20] -
BOLT
10.3036256[1] -
NUT
11.4192974[1] -
PLATE;LOCK
12.J901225[2] -
BOLT
14.1022198[1] -
CARRIER
15.4192979[2] -
SPACER
16.3075003[3] -
GEAR;PLANETARY
18.4269470[6] -
PLATE;THRUST
19.4269452[3] -
PIN
20.4192021[3] -
PIN;SPRING
21.3075005[1] -
GEAR;SUN
22.4371402[6] -
BRG.;NEEDLE
23.1022195[1] -
GEAR;RING
24.J931640[28] -
BOLT
26.1022197[1] -
CARRIER
27.3075002[3] -
GEAR;PLANETARY
28.4183818[3] -
BRG.;NEEDLE
29.4284521[6] -
PLATE;THRUST
30.4269451[3] -
PIN
31.4197763[3] -
PIN;SPRING
32.3074989[1] -
GEAR;SUN
34.1022196[1] -
CARRIER
35.4308769[1] -
SPACER
36.3075001[3] -
GEAR;PLANETARY
37.4269471[3] -
BRG.;NEEDLE
38.4284520[6] -
PLATE;THRUST
39.4269472[3] -
PIN
40.4192020[3] -
PIN;SPRING
41.2038915[1] -
SHAFT;PROP.
43.2038904[1] -
COVER
44.4277474[1] -
PIN;STOPPER
45.4278168[1] -
BRG.;BALL
46.930451[1] -
RING;RETAINING
47.J011230[16] -
BOLT;SEMS
48.4245797[3] -
PLUG
50.4269473[1] -
O-RING
51.4287213[4] -
WASHER;SPRING
52.M341885[4] -
BOLT;SOCKET
54.3053559[1] -
NAME-PLATE
55.M492564[2] -
SCREW;DRIVE
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
