2101-9002 2401-9255 Excavator Swing Reduction Gear Applied To Doosan DH55 Solar 55 DX55
- 2101-9002 2401-9255 Excavator Swing Reduction Gear Applied To Doosan DH55 Solar 55 DX55
- Description
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
- Spec Sheet
| Excavator spare parts name | Swing reducer |
| Equipment Model | SOLAR 55 |
| Parts egory | excavator swing gear |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |

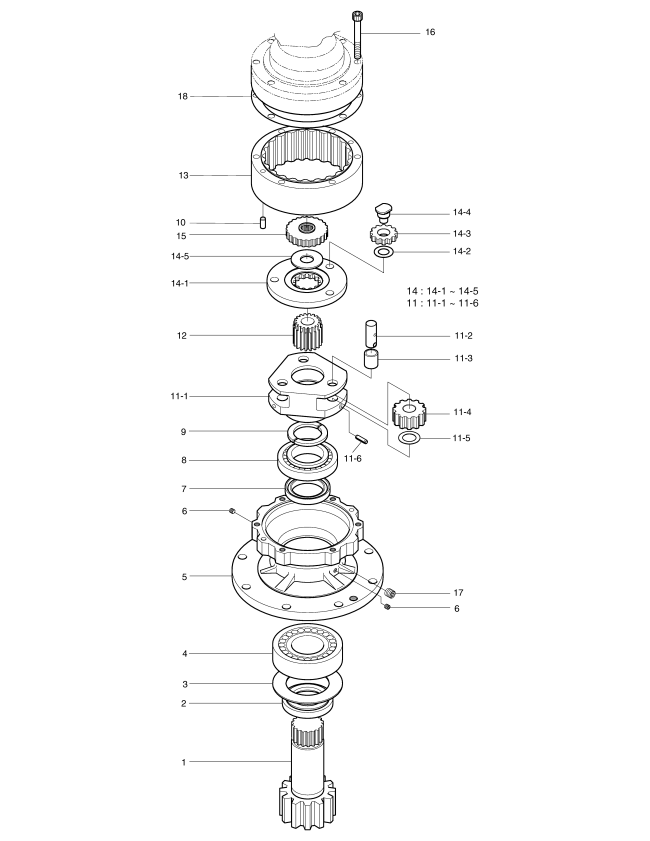

- Parts Diagram
Parts on group SOLAR 55:
-.2101-9002[1]-
SWING REDUCTION GEAR
-.2101-9002A[1]-
SWING REDUCTION GEAR 2101-9002B
-.2101-9002B[1]-
SWING REDUCTION GEAR 2101-9002C
-.2101-9002C[1]-
SWING REDUCTION GEAR
1.2405-1009[1]-
SHAFT
10.2123-1778[1]-
PIN
11.2432-1014[1]-
CARRIER ASS'Y 2
11-1.2514-1010[1]-
CARRIER(NO.2)
11-2.2112-1205[3]-
SHAFT 2
11-3.2110-1204[3]-
BUSH
11-4.2404-1044[3]-
PLANETARY(NO.2)
11-5.2412-1029[3]-
PLATE;THRUST
11-6.S5741162[3]-
PIN;SPRING
12.2404-1040[1]-
GEAR;SUN 2
13.2404-1041[1]-
GEAR;RING
14.2432-1015[1]-
CARRIER ASS'Y 1
14-1.2514-1009[1]-
CARRIER(NO.1)
14-2.2412-1028[3]-
PLATE;THRUST
14-3.2404-1043[3]-
PLANETARY(NO.2)
14-4.2112-1203[3]-
SHAFT 1
14-5.2412-1027[1]-
PLATE;THRUST
15.2404-1042[1]-
GEAR;SUN 1
16.2120-1445[6]-
BOLT;SOCKET M12X1.75X95
17.2181-1116D6[1]-
PLUG PT3/8
18.2180-1220[1]-
GASKET
2.2114-1632[1]-
COLLAR
3.2412-1026[1]-
PLATE
4.2109-9041[1]-
BEARING;TAPER
5.2402-1033[1]-
;GEAR
5.2402-1033A[1]-
;GEAR
5.2402-1033B[1]-
;GEAR
6.2181-1116D1[2]-
PLUG
7.2180-9154[1]-
SEAL;OIL D90XD65
8.2109-9042[1]-
BEARING;TAPER
9.2114-1633[1]-
COLLAR
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* rust
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
