Travel Device ASSY 2401-9232 Applied To Doosan DX55 Solar 55 Excavator Final Drive
- Doosan DX55 Solar 55 Travel Device ASSY 2401-9232 Less Motor
- Spec Sheet
| Parts Name | DOOSAN 55 travel device |
| Appliion | Doosan |
| egory | Excavator final drive |

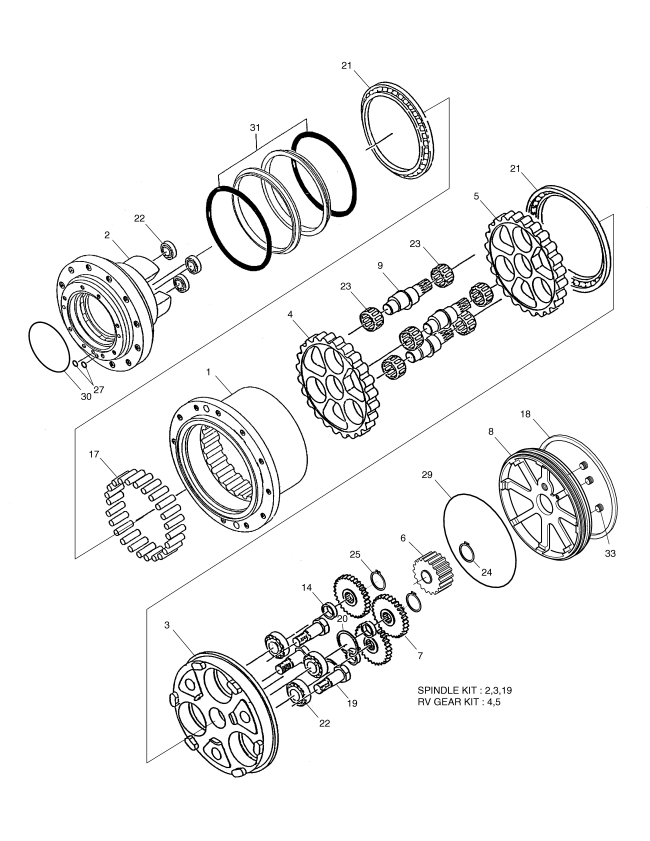

Parts on group SOLAR 55:
-.573B1104-02[1]-
RV GEAR ASS'Y
-.573B1204-02[1]-
RV GEAR KIT
-.516B1107-00[1]-
SPUR GEAR KIT
-.573B1132-03[1]-
SPINDLE ASS'Y
-.2401-9232[2]-
TRAVEL DEVICE 2401-9232A
-.594B1000-00[1]-
TRAVEL REDU. GEAR
-.573B1102-03[1]-
SPINDLE KIT
1.573B1001-00[1]-
HUB
14.550A1014-00[3]-
PIECE;DISTANCE
17.573B1017-00[30]-
PIN
18.550A1018-00[1]-
RING
19.550A1019-00[3]-
BOLT;REAMER
2.573B1002-03[1]-
SPINDLE
20.310B1013-00[3]-
RING;SNAP
21.573B1021-00[2]-
BEARING;BALL
22.310B1022-01[6]-
BEARING;TAPER
23.850A1023-00[6]-
BEARING;NEDDLE
24.*NA00983[1]-
25.*NA00984[3]-
27.*NA00735[3]-
29.*NA00731[1]-
3.510B1003-01[1]-
FLANGE;HOLD
30.*NA00736[1]-
31.*NA01089[2]-
33.*NA00879[3]-
4.573B1004-02[1]-
RV GEAR A
5.573B1005-02[1]-
RV GEAR B
6.516B1006-00[1]-
GEAR;INPUT
7.516B1007-00[3]-
GEAR;SPUR
8.510B1008-01[1]-
COVER
9.510B1009-00[3]-
CRANK;SHAFT
| Key | Part No | Description | Qty |
|---|---|---|---|
| - |  |
TRAVEL DEVICE | 2 |
| - |  |
SPUR GEAR KIT | 1 |
| - |  |
SPINDLE KIT | 1 |
| - |  |
RV GEAR ASS'Y | 1 |
| - |  |
SPINDLE ASS'Y | 1 |
| - |  |
RV GEAR KIT | 1 |
| - |  |
TRAVEL REDU. GEAR | 1 |
| 1 |  |
HUB | 1 |
| 2 |  |
SPINDLE | 1 |
| 3 | FLANGE;HOLD | 1 | |
| 4 |  |
RV GEAR A | 1 |
| 5 |  |
RV GEAR B | 1 |
| 6 | GEAR;INPUT | 1 | |
| 7 |  |
GEAR;SPUR | 3 |
| 8 |  |
COVER | 1 |
| 9 |  |
CRANK;SHAFT | 3 |
| 14 |  |
PIECE;DISTANCE | 3 |
| 17 |  |
PIN | 30 |
| 18 | RING | 1 | |
| 19 |  |
BOLT;REAMER | 3 |
| 20 |  |
RING;SNAP | 3 |
| 21 | BEARING;BALL | 2 | |
| 22 |  |
BEARING;TAPER | 6 |
| 23 |  |
BEARING;NEDDLE | 6 |
| 24 |  |
RING;SNAP C(D15) | 1 |
| 25 |  |
RING;SNAP C(D22) | 3 |
| 27 | O-RING(P7-90) | 3 | |
| 29 |  |
O-RING(G200-70) | 1 |
| 30 |  |
O-RING(WG26-70) | 1 |
| 31 |  |
SEAL;FLOATING | 2 |
| 33 |  |
PLUG;HEX. SOCKET(GM-3/8) | 3 |
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
