Excavator Travel Motor 148-4695 209-5992 204-2819 Fit For Excavator 320C 320D
- Excavator Travel Motor 148-4695 209-5992 204-2819 Fit For Excavator 320C 320D
- Product description
| Parts Name | Travel Motor |
| Equipment | Excavator E320d |
| egory | Excavator Undercarriage Parts |
| Item Condition | New |
| MOQ | 1 |

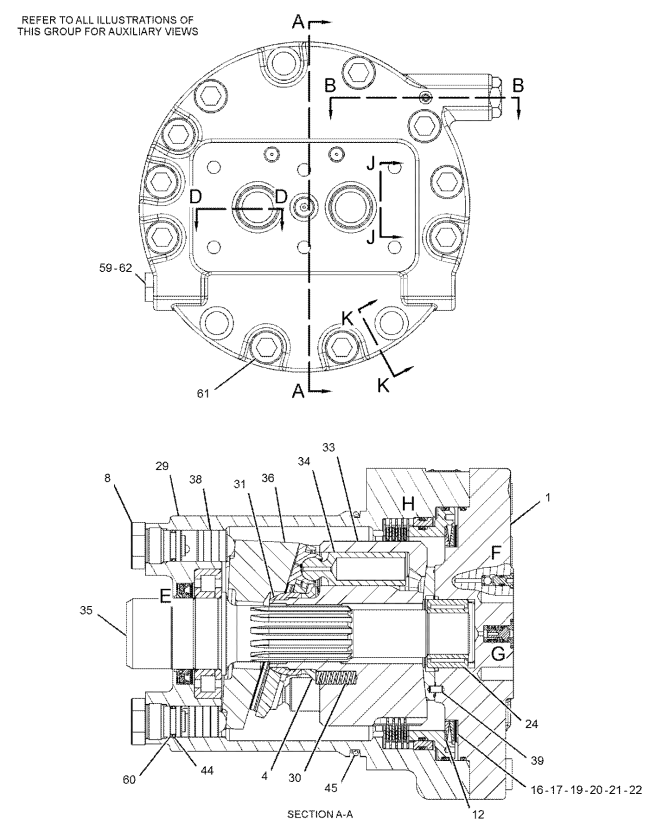

209-5992 MOTOR GP-TRAVEL
S/N SPN1-UP
PART OF 215-9982 MOTOR & MTG GP-TRAVEL
OPTIONAL FIELD REPLACEMENT ORDER @@@@@215-9952@@@@@
ENTIRE GROUP:
INDIVIDUAL PARTS:
HEAD .
2.7Y-4212[1] -
BEARING
3.7Y-4213[1] -
PISTON-BRAKE .
4.7Y-4215[1] -
SPACER
5.7Y-4216[1] -
SPOOL .
6.7Y-4224[2] -
ORIFICE .
7.087-4742[1] -
VALVE .
8.087-4743[2] -
STOP .
9.087-4786[1] -
ADAPTER .
10.094-1399[1] -
RING-RETAINING
11.094-1882 L[1] -
PLUG .
12.095-7378[1] -
WASHER SET .
13.095-7380[1] -
SPRING .
14.095-7382[1] -
RETAINER .
15.096-1519[1] -
SEAT .
16.096-1521 B[1] -
SHIM (1-MM THK) .
17.096-1522 B[1] -
SHIM (2-MM THK) .
18.096-1523[1] -
GUIDE-PISTON .
19.096-3785 B[1] -
SHIM (1.2-MM THK) .
20.096-3786 B[1] -
SHIM (1.4-MM THK) .
21.096-3787 B[1] -
SHIM (1.6-MM THK) .
22.096-3788 B[1] -
SHIM (1.8-MM THK) .
23.096-3978[1] -
SPRING .
24.096-4003[1] -
SET-BEARING
25.096-4376 J[1] -
SEAL-LIP TYPE
26.096-5915[2] -
RETAINER .
27.107-6954[4] -
PLATE-FRICTION
28.107-6955[5] -
PLATE-SEPARATOR
29.107-6969[1] -
BODY
30.118-4057[9] -
SPRING
31.122-5114[1] -
GUIDE-BALL
32.123-2008[2] -
KEY
33.133-6777[1] -
BARREL AS
34.147-5860[1] -
PISTON AS
35.209-5894[1] -
SHAFT
36.209-5909[1] -
PLATE-CAM
38.209-6049 C[2] -
PISTON
39.094-1875[1] -
DOWEL
40.094-1882[10] -
PLUG .
41.095-1572 J[2] -
SEAL-O-RING
42.095-1575 J[3] -
SEAL-O-RING
43.095-1585 J[1] -
SEAL-O-RING
44.095-1586 J[2] -
SEAL-O-RING
45.095-1685[1] -
SEAL-O-RING
46.095-1700[2] -
SEAL-O-RING
47.095-7383 J[1] -
SEAL-O-RING
48.095-7384 J[1] -
SEAL-O-RING
49.095-7386 J[1] -
RING-BACKUP
50.095-7387 J[1] -
RING
52.096-4377 J[2] -
SEAL-O-RING
53.096-4378 J[1] -
RING-BACKUP
54.096-5916[2] -
SEAT
55.096-5919 J[2] -
RING-BACKUP
56.121-1558[2] -
PIN
57.2D-6642[2] -
BALL
58.2M-9780 J[1] -
SEAL-O-RING
59.3K-0360 J[1] -
SEAL-O-RING
60.7Y-4217 J[2] -
RING-BACKUP
61.8T-4944 M[10] -
BOLT-SOCKET HEAD (M16X2X40-MM)
62.9S-4185[1] -
PLUG-O-RING
