VOE14528735 VOE14575732 Travel Gearbox Applied To Vo-lvo EC240B Excavator Final Drive
- VOE14528735 VOE14575732 Travel Gearbox Applied To Vo-lvo EC240B EC240C Excavator Final Drive
- Spec Sheet
| Excavator spare parts name | Travel gearbox |
| Equipment Model | Vo-lvo EC240B EC240C |
| Parts egory | Excavator Final Drive Parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
Excavator EC240B . EC240C . FC2421C . Vo-lvo_pro

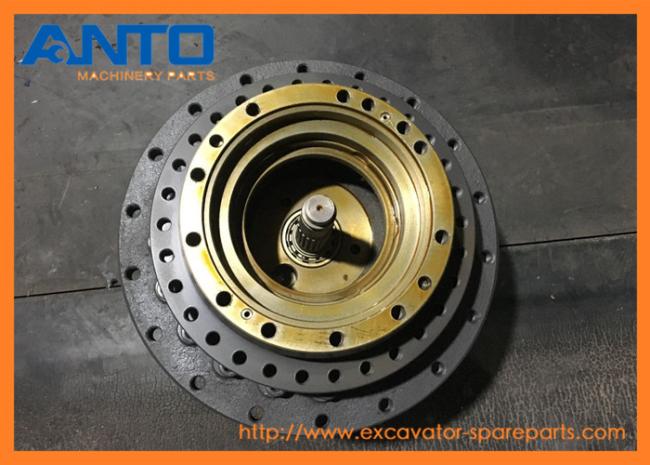

- Product Photos
- Parts Diagram

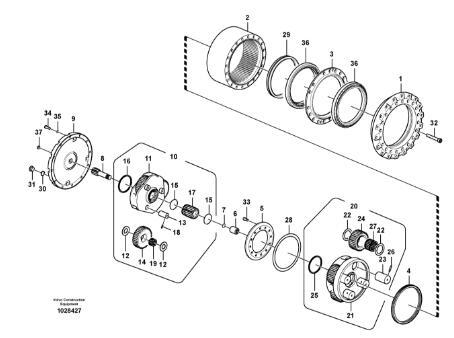

Type 1:

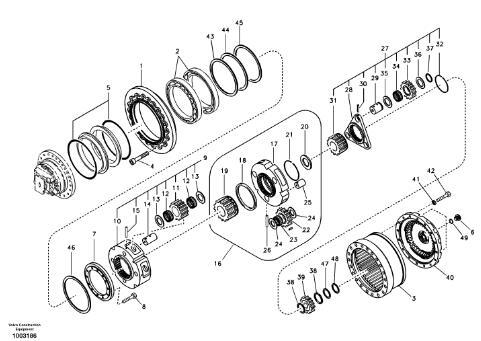

Type 2:
|
VOE14528735[1]-
Gearbox . 1.VOE14528715[1]- Housing . 2.VOE14538940[2]- Bearing . 3.SA7117-34120[1]- Ring gear . 4.SA9016-21818[20]- Hex. socket screw . 5.VOE14528720[1]- Seal . 6.SA9415-11042[3]- Plug . 7.SA7117-34190[1]- Retainer . 8.VOE978932[12]- Hexagon screw . 9.SA7117-34200[1]- Planet carrier . 10.SA7117-34210[1]- Carrier . 11.SA7117-34220[4]- Planetary gear . 12.SA7117-34230[8]- Needle bearing . 13.SA7117-34240[8]- Washer . 14.SA7117-34250[4]- Pin . 15.SA9325-08016[4]- Spring Pin . 16.VOE14528721[1]- Planet carrier . 17.VOE14528722[1]- Carrier . 18.SA1036-00310[1]- Thrust ring . 19.SA7117-34280[1]- Gear . 20.SA8230-21020[1]- Thrust ring . 21.SA7117-34290[1]- Retaining ring . 22.SA7117-34300[3]- Planetary gear . 23.SA7117-34310[3]- Needle bearing . 24.SA7117-34320[6]- Washer . 25.SA7117-34330[3]- Pin . 26.SA9325-06012[3]- Spring pin . 27.SA7117-34340[1]- Planet carrier . 28.SA7117-34350[1]- Planet carrier . 29.SA7117-34370[3]- Pin . 30.SA9325-06012[3]- Spring pin . 31.SA7117-34360[1]- Gear . 32.SA7117-34440[1]- Retaining ring . 33.SA7117-34420[3]- Planetary gear . 34.SA7117-34380[3]- Needle bearing . 35.SA7117-34390[3]- Washer . 36.SA7117-34400[3]- Washer . 37.SA9541-01034[3]- Retaining ring . 38.SA1036-00290[2]- Thrust ring . 39.SA7117-34430[1]- Gear . 40.VOE14601854[1]- Cover . 10.VOE14526221[1]- Overhaul kit |
VOE14575732[1]- |
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
