9251680 9263595 4637796 Travel Device Applied To Hitachi ZX450-3 ZX470-3 ZX500-3 Excavator Final Drive
- 9251680 9263595 4637796 Travel Device Applied To Hitachi ZX450-3 ZX470-3 ZX500-3 Excavator Final Drive
| Excavator spare parts name | Travel GEARBOX |
| Equipment Model | ZX450-3 |
| Parts egory | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
The parts could be applied to below models:
EXCAVATOR ZX450-3 ZX470-3 ZX500-3 ZX520-3 Hyundai

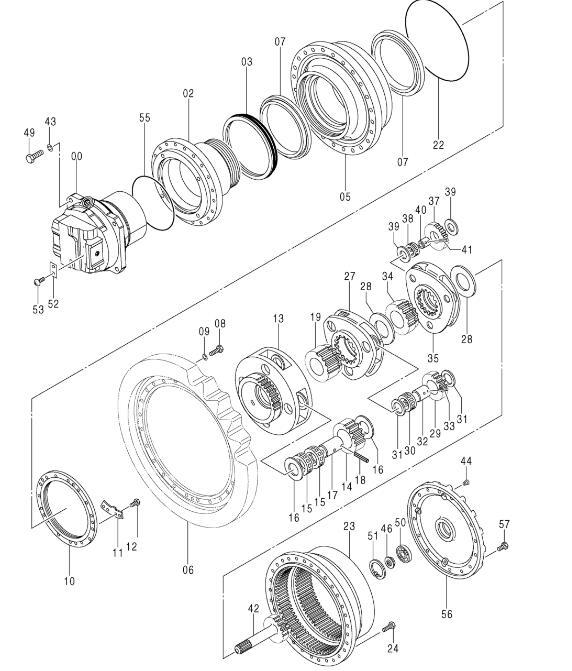

parts diagram:
00-57.9251680 I[1] -
TRAVEL DEVICE 9263595 .
00-57.9263595[1] -
TRAVEL DEVICE .
00.4637796[1] -
MOTOR;OIL .
MOTOR;OIL (1/2)
MOTOR;OIL (2/2)
02.1027942[1] -
HOUSING .
03.4344155[1] -
SEAL;GROUP .
05.1015882[1] -
DRUM .
06.1010956[1] -
SPROCKET
07.4200411[2] -
BRG.;ROL. .
08.J932270[24] -
BOLT .
09.A590922[24] -
WASHER;SPRING .
10.3043140[1] -
NUT .
11.3043141[1] -
PLATE;LOCK .
12.J901225[2] -
BOLT .
13.1015883[1] -
CARRIER
14.3053195[4] -
GEAR;PLANETARY .
15.4452484[8] -
BRG.;NEEDLE .
16.4219595[8] -
PLATE;THRUST .
17.4263903[4] -
PIN
18.4207947[4] -
PIN;SPRING .
19.3053786[1] -
GEAR;SUN .
22.4203187[1] -
O-RING .
23.1018360[1] -
GEAR;RING .
24.J931845[30] -
BOLT .
27.1015523[1] -
CARRIER
28.4263905[2] -
SPACER .
29.3053194[3] -
GEAR;PLANETARY .
30.4452483[3] -
BRG.;NEEDLE .
31.4201968[6] -
PLATE;THRUST .
32.4263902[3] -
PIN .
33.4203180[3] -
PIN;SPRING .
34.3053785[1] -
GEAR;SUN .
35.1015505[1] -
CARRIER
37.3053098[3] -
GEAR;PLANETARY .
38.4452480[3] -
BRG.;NEEDLE .
39.4269295[6] -
PLATE;THRUST .
40.4263901[3] -
PIN .
41.4222030[3] -
PIN;SPRING
42.2044685[1] -
SHAFT;PROP. .
43.A590918[4] -
WASHER;SPRING .
44.4279343[3] -
PLUG .
46.4288767[1] -
PIN;STOPPER .
49.J911860[4] -
BOLT .
50.4274541[1] -
BRG.;BALL
51.991725[1] -
RING;RETAINING .
52.+++++++[1] -
NAME-PLATE
53.M492564[2] -
SCREW;DRIVE .
55.4271596[1] -
O-RING .
56.1023348[1] -
COVER .
57.4373463[16] -
BOLT;SHOE
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* rust
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
