9190221 9212584 9190222 9232360 Excavator Crawler Final Drive for Hitachi ZX330 ZX350H Travel Device

9190221 I[2] -

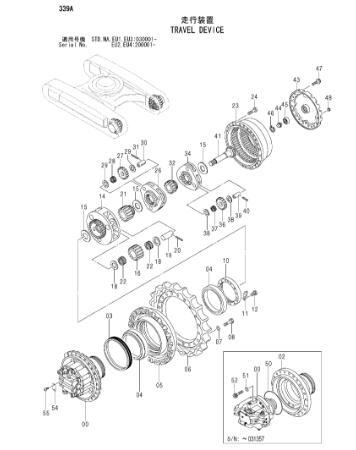

TRAVEL DEVICE 9190222 .
9212584 I[2] -
TRAVEL DEVICE 9232360 (for assembly of machine) .
9190222[2] -
TRAVEL DEVICE .
9232360[2] -
TRAVEL DEVICE (for transportation) .
00.9190296 I[1] -
MOTOR;OIL 9195488 .
00.9213431 I[1] -
MOTOR;OIL 9231673 (for assembly of machine) .
00.9195488[1] -
MOTOR;OIL .
00.9231673[1] -
MOTOR;OIL (for transportation) .
02.1022194[1] -
HOUSING .
03.4066695[1] -
SEAL;GROUP
04.4192975[2] -
BRG.;ROL. .
05.1022179[1] -
DRUM .
06.1022168[1] -
SPROCKET
07.A590920[20] -
WASHER;SPRING .
08.J932060[20] -
BOLT .
10.3036256[1] -
NUT .
10.3094717[1] -
NUT
11.4192974[1] -
PLATE;LOCK .
11.4470326[1] -
PLATE;LOCK .
12.J901222[2] -
BOLT .
12.J901225[2] -
BOLT .
14.1022198[1] -
CARRIER .
15.4401293[3] -
SPACER
16.3075003[3] -
GEAR;PLANETARY .
18.4269470[6] -
PLATE;THRUST .
19.4269452[3] -
PIN .
20.4192021[3] -
PIN;SPRING .
21.3075005[1] -
GEAR;SUN .
22.4455088[6] -
BRG.;NEEDLE .
23.1022195[1] -
GEAR;RING .
24.J931640[28] -
BOLT .
26.1022197[1] -
CARRIER
27.3075002[3] -
GEAR;PLANETARY .
28.4455099[3] -
BRG.;NEEDLE .
29.4284521[6] -
PLATE;THRUST .
30.4269451[3] -
PIN .
31.4197763[3] -
PIN;SPRING .
32.3074989[1] -
GEAR;SUN .
34.1022196[1] -
CARRIER .
36.3075001[3] -
GEAR;PLANETARY
37.4455098[3] -
BRG.;NEEDLE .
38.4284520[6] -
PLATE;THRUST .
39.4269472[3] -
PIN .
40.4192020[3] -
PIN;SPRING .
41.2038915[1] -
SHAFT;PROP. .
41.2048000[1] -
SHAFT;PROP.
43.2045031[1] -
COVER
44.4277474[1] -
PIN;STOPPER .
45.4278168[1] -
BRG.;BALL
46.930451[1] -
RING;RETAINING
47.J011230[16] -
BOLT;SEMS .
47.4609016[16] -
BOLT;SEMS .
48.4245797[3] -
PLUG .
50.4269473[1] -
O-RING .
51.4287213[4] -
WASHER;SPRING .
52.M341885[4] -
BOLT;SOCKET .
54.3053559[1] -
NAME-PLATE
55.M492564[2] -
SCREW;DRIVE





• Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.

Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.





• Advantage





• Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



• Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
