8943916021 8-94391602-1 ISUZU 6HK1 Cylinder Liner For Hitachi ZX330-3 ZX350-3 Excavator
- 8943916021 8-94391602-1 ISUZU 6HK1 Cylinder Liner Used For Hitachi ZX330-3 ZX350-3 Excavator
- Spec Sheet
| Excavator spare parts name | 6HK1 engine cylinder liner |
| Equipment Model | 6HK1 ZX330 |
| Parts egory | Excavator Engine spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
330C LC JD 370C JD CX650-2 EG70R-3 LX130-7 LX160-7 MA200 SCX300-C SCX400 SCX400T SCX500-C SCX500W SCX550-C SCX700 SCX700-2 SR2000G ZH200-A ZH200LC-A ZR125HC ZR950JC ZW220 ZW220-HCMF ZW250 ZW250-HCMF ZX170W-3 ZX170W-3-AMS ZX170W-3DARUMA ZX190W-3 ZX190W-3-AMS ZX190W-3DARUMA ZX190W-3M ZX200-3 ZX200-3F ZX210-3-AMS ZX210-3-HCME ZX210H-3 ZX210K-3 ZX210L-3 ZX210N-3-AMS ZX210N-3-HCME ZX210W-3 ZX210W-3-AMS ZX210W-3DARUMA ZX220W-3 ZX225US-3 ZX225US-3-HCME ZX225USR-3 ZX225USR-3-HCME ZX225USRK-3 ZX225USRL-3 ZX240-3 ZX240-3-AMS ZX240N-3-HCME ZX250H-3 ZX250K-3 ZX250L-3 ZX250LC-3-HCME ZX250W-3 ZX270-3 ZX280L-3 ZX280LC-3 ZX280LC-3-HCME ZX280LCH-3 ZX330 ZX330-3 ZX330-3F ZX330-3G ZX330-5G ZX330-HHE ZX330LC-5G ZX350-3-AMS ZX350-5G ZX350H ZX350H-3 ZX350H-3F ZX350H-3G ZX350H-5G ZX350H-HHE ZX350K ZX350K-3 ZX350K-3F ZX350K-3G ZX350K-5G ZX350L-3 ZX350LC-3-HCME ZX350LC-3F-HCME ZX350LC-3FAMS ZX350LC-5G ZX350LC-AMS ZX350LC-HCME ZX350LCH-5G ZX350LCK-5G ZX350LL ZX350MTH-AMS ZX350MTH-HCME ZX350W ZX360LC-HHE ZX360W-3 ZX370MTH ZX400LCH-3 ZX400W-3 ZX500W Hitachi

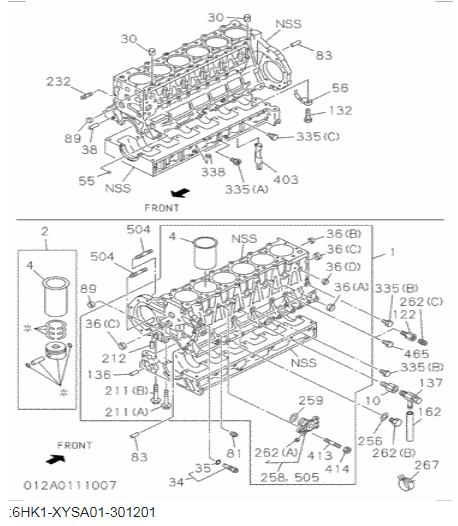

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8980052794 | [1] | BLOCK ASM; CYL | C |
| 1 | 8981807060 | [1] | BLOCK ASM; CYL | |
| 2 | 1878129861 | [6] | LINER SET; ENG CYL | C OD GRADE=1X, |
| 2 | 1878129871 | [6] | LINER SET; ENG CYL | C OD GRADE=3X, |
| 2 | 1878135391 | [6] | LINER SET; ENG CYL | OD GRADE=1X, |
| 2 | 1878135401 | [6] | LINER SET; ENG CYL | OD GRADE=3X, |
| 4 | 8943916021 | [6] | LINER; C/BL | OD GRD=IX,ID=NON<BR>ALSO INCLUDED IN LINER SET. |
| 4 | 8943916031 | [6] | LINER; C/BL | OD GRD=3X,ID=NON<BR>ALSO INCLUDED IN LINER SET. |
| 10 | 8943963780 | [1] | CONNECTOR; WATER DRAIN | |
| 30 | 8943996881 | [2] | PIN; CYL HD GASKET SETTING | |
| 34 | 8943930771 | [1] | VALVE; OIL RELIEF | |
| 35 | 5096230350 | [1] | GASKET; RELIEF VLV | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 036(A). | 1096000052 | [4] | CUP; SEALING,WATER JACKET | OD=45 |
| 036(B). | 8943990050 | [1] | CUP; SEALING,WATER JACKET | OD=25 |
| 036(C). | 8970968240 | [4] | CUP; SEALING,WATER JACKET | OD=40 |
| 036(D). | 1096000160 | [1] | CUP; SEALING,WATER JACKET | OD=25 |
| 38 | 8944836740 | [2] | PIN; TIMING GEAR | |
| 55 | 9000970110 | [1] | PLUG; OIL GALLERY | |
| 56 | 8943951940 | [6] | JET; OIL,PISTON COOLING | A |
| 56 | 8980206490 | [6] | JET; OIL,PISTON COOLING | |
| 56 | 8981733420 | [6] | JET; OIL,PISTON COOLING | |
| 81 | 8943973380 | [1] | PLUG; WATER JACKET | |
| 83 | 8944836740 | [2] | PIN; FLYWHEEL HSG | |
| 89 | 9112191920 | [3] | CUP; SEALING,OIL GALLERY | |
| 89 | 9111291280 | [3] | CUP; SEALING,OIL GALLERY | |
| 132 | 8943944191 | [6] | VALVE; CHECK,OIL | |
| 136 | 8943935961 | [2] | BUSHING; DRIVE SHAFT,OIL PUMP | |
| 136 | 8980915660 | [2] | BUSHING; DRIVE SHAFT,OIL PUMP | |
| 137 | 1096800240 | [1] | COCK; DRAIN,WATER | |
| 162 | 35593000 | [1] | HOSE; WATER DRAIN,C/BL | L=350, S.B.L=3000 |
| 211(A). | 8943962073 | [14] | BOLT; CRANK | M14X115 W/FLANGE |
| 211(A). | 8970776380 | [14] | BOLT; CRANK | M14X115 W/FLANGE |
| 211(B). | 8943995532 | [25] | BOLT; CRANK | M10X82 |
| 212 | 8971354230 | [2] | PIN; CRANK | |
| 232 | 1093020890 | [1] | STUD; WATER PUMP | |
| 256 | 1096301410 | [1] | GASKET; ADAPTER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 258 | 8976028060 | [1] | ADAPTER; BLOCK HTR | |
| 258 | 8976118540 | [1] | ADAPTER; BLOCK HTR | |
| 258 | 8976118540 | [1] | ADAPTER; BLOCK HTR | |
| 259 | 1096231840 | [1] | GASKET; ADAPTER | |
| 262(A). | 1131630020 | [1] | PLUG; ADAPTER | |
| 262(B). | 9098621560 | [1] | PLUG; ADAPTER | |
| 267 | 1097041000 | [1] | CLIP; DRAIN HOSE | |
| 335(A). | 5132650010 | [1] | PLUG; C/BL,SIDE | |
| 335(B). | 8943992250 | [4] | PLUG; C/BL,SIDE | |
| 335(B). | 8973296170 | [4] | PLUG; C/BL,SIDE | |
| 335(C). | 8980034160 | [2] | PLUG; C/BL,SIDE | |
| 338 | 5111290030 | [2] | CUP; SEALING,GUIDE TUBE HOLE | |
| 403 | 8943953511 | [1] | GUIDE; GALLERY | |
| 413 | 9041108300 | [2] | STUD; ADAPTER | A |
| 413 | 410108300 | [2] | STUD; ADAPTER | |
| 414 | 911502080 | [2] | NUT; ADAPTER | A |
| 414 | 911802080 | [2] | NUT; ADAPTER | |
| 465 | 8943992250 | [2] | PLUG | M14 |
| 465 | 8973296170 | [2] | PLUG | M14X16.5 |
| 465 | 8943992250 | [1] | PLUG | M14 |
| 465 | 8973296170 | [1] | PLUG | M14X16.5 |
| 504 | 8973632370 | [2] | STUD; WATER PUMP | |
| 505 | 8976118540 | [1] | ADAPTER; WATER FEED |
- Description
parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The excavator spare parts are supplied strictly according to the genuine parts alog.
3. All the excavator spare parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
