21EK-10120 Wheel Excavator Spare Parts Lamp Head Standard Package
- 21EK-10120 LAMP-HEAD Applied To Hyundai Excavator Spare Parts
- Spec Sheet
| Excavator spare parts name | Head lamp |
| Equipment Model | R140W-7 R170W-7 R200W-7 |
| Parts egory | Excavator spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
3 SERIES WHEEL EXCAVATOR R95W3
7 SERIES WHEEL EXCAVATOR R140W7 R140W7A R170W7 R170W7A R200W7 R200W7A Hyundai

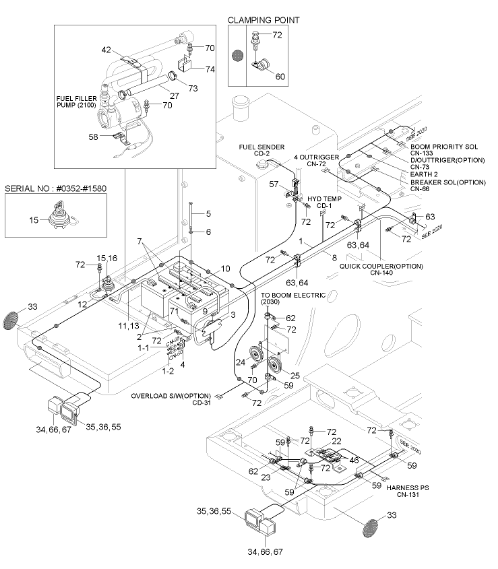

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21N6-24011 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24012 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24013 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24014 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24015 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24016 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24017 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24018 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24019 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24020 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24021 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24022 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24023 | [1] | HARNESS-FRAME | |
| 1 | 21N6-24024 | [1] | HARNESS-FRAME | |
| 1-1. | 21N4-01311 | [1] | LINK-FUSIBLE(30A) | |
| 1-2. | 21N4-01320 | [1] | LINK-FUSIBLE(60A) | |
| 1-3. | 21EA-50550 | [1] | DIODE | NOT SHOWN |
| 2 | 21E6-20270 | [2] | BATTERY | |
| 3 | 21E5-0003 | [1] | RELAY-BATTERY | |
| 3 | 21QA-70010 | [1] | RELAY-BATTERY | |
| 4 | 21N4-01140 | [1] | PLATE-CLIP | |
| 5 | S017-102502 | [2] | BOLT-HEX | |
| 6 | S403-102002 | [2] | WASHER-PLAIN | |
| 7 | 25D1-10150 | [2] | BAR-BATTERY | |
| 8 | 21N6-21200 | [1] | CABLE(BATT RY-STARTER) | |
| 8 | 21N6-21210 | [1] | CABLE(RELAY-STARTER) | |
| 9 | 21EA-60490 | [1] | CABLE(BATT-BATT RY) | |
| 10 | 21N4-01400 | [1] | CABLE(BATT-BATT) | |
| 11 | 21L7-20430 | [1] | CABLE(BATT-SW&EARTH) | |
| 12 | 21NA-10600 | [1] | STRAP-EARTH | |
| 13 | 24L3-01120 | [1] | CABLE(BATT-EARTH) | W/O MASTER SW |
| 15 | 21L7-10500 | [1] | SWITCH-MASTER | |
| 15 | 21N4-10441 | [1] | SWITCH-MASTER | |
| 15 | 21L7-10500 | [1] | SWITCH-MASTER | |
| 15-1. | 21N4-10441K | [1] | KEY-MASTER SWITCH | |
| 16 | 21EN-00420 | [1] | DECAL-MASTER SW | |
| 16 | 21N4-10450 | [1] | DECAL-MASTER SW | |
| 16 | 21N4-10451 | [1] | DECAL-MASTER SWITCH | |
| 16 | 21LD-34180 | [1] | DECAL-MASTER SWITCH | |
| 22 | 21N4-01100 | [1] | PLATE-STEERING | |
| 23 | 21N4-01130 | [1] | PLATE-CLIP | |
| 24 | 21N5-10050 | [1] | HORN-LOW | |
| 24 | 21N5-10051 | [1] | HORN-LOW | |
| 25 | 21N5-10060 | [1] | HORN-HIGH | |
| 25 | 21N5-10061 | [1] | HORN-HIGH | |
| 27 | 21N4-20550 | [1] | HOSE-OUTLET | WITH FUEL PUMP |
| 33 | 21EK-10150 | [2] | REFLECTOR-SIDE | |
| 34 | 21EK-10350 | [2] | LAMP-FLASHER POSITION | |
| 34 | 21EK-10351 | [2] | LAMP-FLASHER POSITION | |
| 35 | 21EK-10120 | [2] | LAMP-HEAD | |
| 36 | 21EK-10130 | [2] | BULB-H4, 70/75W | |
| 36 | 21EK-10131 | [2] | BULB | |
| 42 | E127-3158 | [1] | BAND-FUEL PUMP | WITH FUEL PUMP |
| 46 | 21N4-01111 | [3] | CLIP-ECONO SEAL | |
| 53 | 21N4-11090 | [1] | HARNESS-STOP LAMP | |
| 53 | 21N4-11091 | [1] | HARNESS-STOP LAMP | |
| 53 | 21N4-12011 | [1] | HARNESS-EXT,STOPLAMP | |
| 55 | S161-040356 | [1] | SCREW-CROSS R/ROUND | |
| 57 | 25D1-10640 | [1] | CLIP ASSY | |
| 58 | 25D1-10650 | [1] | CLIP ASSY | |
| 59 | 21E9-00170 | [10] | CLIP-HARNESS | |
| 60 | S593-000902 | [15] | CLIP-HARNESS | |
| 61 | S543-120002 | [1] | CLAMP-TUBE | |
| 62 | S543-160002 | [2] | CLAMP-TUBE | |
| 63 | S543-240002 | [7] | CLAMP-TUBE | |
| 64 | S543-280002 | [2] | CLAMP-TUBE | |
| 66 | S411-040006 | [4] | WASHER-SPRING | |
| 67 | S161-040166 | [4] | SCREW-CROSS R/ROUND | |
| 70 | S035-082026 | [14] | BOLT-W/WASHER | |
| 71 | S035-083026 | [2] | BOLT-W/WASHER | |
| 72 | S037-102026 | [25] | BOLT-W/WASHER | |
| 73 | S520-032000 | [3] | CLAMP-HOSE | WITH FUEL PUMP |
| 74 | 21N4-00770 | [1] | CLIP | WITH FUEL PUMP |
- Description
parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The excavator spare parts are supplied strictly according to the genuine parts alog.
3. All the excavator spare parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
