39Q6-12100 39Q6-12101 39Q6-12102 HYUNDAI R220LC-9S Excavator Swing Reduction Gear
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 39Q6-12100 39Q6-12101 39Q6-12102 HYUNDAI R220LC-9S Excavator Swing Reduction Gear
- Spec Sheet
| spare parts name | Swing reduction gear |
| Equipment Model | R210LC9 R220LC9 R235LC9 |
| Parts egory | Excavator reduction gear |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A RB220LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R210W-9 R210W9A R210W9MH R210W9S Hyundai
- More swing drive parts for HYUNDAI machines
| 39Q6-10161 SWING MOTOR UNIT |
| R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| 39Q6-12101 SWING REDUCTION GEAR |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A |
| 81Q6-01080BG SWING BEARING |
| R215LC7, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| 31Q6-10120AR SWING MOTOR |
| R235LCR9 |
| 31Q6-10161AR SWING REDUCTION GEAR |
| R235LCR9 |
| 81Q6-00021BG SWING BEARING |
| RD210-7V, RD220-7, RD220LC9 |
| 39Q6-12102 SWING REDUCTION GEAR |
| HW210, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RD210-7 |
| 31Q6-10151 SWING MOTOR ASSY |
| R210LC9 |
| 31Q6-10151SG8 SWING MOTOR ASSY |
| R210LC9 |
| 39Q6-10152 SWING MOTOR ASSY |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9, R235LCR9A |
| 38Q6-10152 SWING MOTOR ASSY |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9, R235LCR9A |
| 38Q6-10172 SWING MOTOR ASSY |
| R210W-9, R210W9MH, R210W9S |
| 39Q6-11100 SWING MOTOR |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| 39Q6-10150 SWING MOTOR ASSY |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9, R235LCR9A |
| 31Q6-10150 SWING MOTOR ASSY |
| R210LC9 |
| 31Q5-12160 SWING MOTOR UNIT |
| R170W9, R170W9S, R180W9A, R180W9S |
| 31Q4-11132 SWING MOTOR UNIT |
| R140W9, R140W9A, R140W9S |
| 31Q4-10170 SWING MOTOR UNIT |
| R140W9, R140W9A, R140W9S |
| 31Q4-12121 SWING MOTOR ASSY |
| R140W9, R140W9S |
| 31Q4-11142 SWING REDUCTION GEAR |
| R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| 31Q4-11141 SWING REDUCTION GEAR |
| R140LC9, R140LC9S, R140W9, R140W9S, R145CR9, RD140LC9 |
| 31Q4-11131 SWING MOTOR UNIT |
| R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| 81QE-01021 SWING BEARING |
| R1200-9 |
| 31QE-10141 SWING REDUCTION GEAR |
| R1200-9 |
| 38Q6-10150 SWING MOTOR |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R235LCR9, R235LCR9A, RB220LC9S |
| 38Q6-11100 SWING MOTOR |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| 81Q6-01080 SWING BEARING |
| HX220L, R210LC9, R210LC9BH, R220LC9A, RB220LC9S |
| 31Q6-10141 SWING REDUCTION GEAR |
| HX160L, HX180L, R160LC9, R160LC9A, R160LC9S, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9S, R220LC9A, R220NLC9A, RB160LC9S, ... |
| 31Q6-10161 SWING REDUCTION GEAR |
| R235LCR9, R235LCR9A |
| 31N7-10180 SWING MOTOR ASSY |
| R250LC7, R250LC7A |
| 31N7-11160 SWING MOTOR |
| R250LC7, R250LC7A |
| 81EN-00053BG SWING BEARING |
| R250LC7, R250LC7A |
| 31Q7-10160 SWING MOTOR |
| R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 81EN-00053GG SWING BEARING |
| HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 31Q8-10200 SWING MOTOR ASSY |
| R290LC9, R300LC9A, R300LC9S, R300LC9SH |
| 31Q8-10170 SWING MOTOR |
| R290LC9, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH |

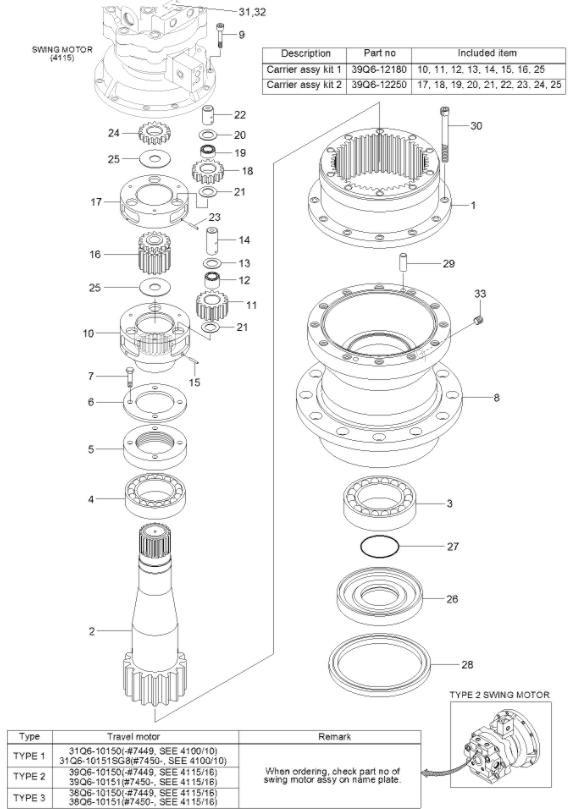

- Parts List Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4115 |
| *-2. | 39Q6-12100 | [1] | SWING REDUCTION GEAR | HYMS |
| *-2. | 39Q6-12101 | [1] | SWING REDUCTION GEAR | HYMS |
| *-2. | 39Q6-12102 | [1] | SWING REDUCTION GEAR | HYMS |
| 1 | 39Q6-12110 | [1] | GEAR-RING | |
| 2 | 39Q6-12121 | [1] | SHAFT-DRIVE | |
| 3 | 39Q6-12130 | [1] | BEARING-TAPER.MAIN | |
| 4 | 39Q6-12140 | [1] | BEARING-TAPER | |
| 5 | 39Q6-12150 | [1] | NUT-RING | |
| 6 | 39Q6-12161 | [1] | PLATE-LOCK | |
| 7 | S017-120166 | [4] | BOLT-HEX | |
| 8 | 39Q6-12171 | [1] | CASING | |
| 8 | 39Q6-12172 | [1] | CASING | |
| 9 | S109-100306 | [10] | BOLT-SOCKET | |
| 10 | 39Q6-12190 | [1] | CARRIER 2 | |
| 11 | 39Q6-12200 | [3] | GEAR-PLANETARY 2 | |
| 12 | 39Q6-12210 | [6] | BEARING-NEEDLE 2 | |
| 13 | 39Q6-12220 | [6] | WASHER-THRUST 2 | |
| 14 | 39Q6-12230 | [3] | PIN-CARRIER 2 | |
| 15 | S472-800364 | [3] | PIN-SPRING | |
| 16 | 39Q6-12240 | [1] | GEAR-SUN 2 | |
| 17 | 39Q6-12260 | [1] | CARRIER 1 | |
| 18 | 39Q6-12271 | [3] | GEAR-PLANETARY 1 | |
| 19 | 39Q6-12280 | [3] | BEARING-NEEDLE 1 | |
| 20 | 39Q6-12290 | [3] | WASHER-THRUST 1,UPP | |
| 21 | 39Q6-12300 | [3] | WASHER-THRUST 1,LOW | |
| 22 | 39Q6-12310 | [3] | PIN-CARRIER 1 | |
| 23 | S472-600364 | [3] | PIN-SPRING | |
| 24 | 39Q6-12320 | [1] | GEAR-SUN 1 | |
| 25 | 39Q6-12330 | [2] | PLATE-THRUST | |
| 26 | 39Q6-12340 | [1] | SLEEVE | |
| 27 | S631-120001 | [1] | O-RING | |
| 28 | 39Q6-12350 | [1] | SEAL-OIL | |
| 29 | 39Q6-41450 | [2] | PIN-PARALLEL | |
| 30 | S109-16045D | [12] | BOLT-SOCKET | |
| 31 | 39Q6-12360 | [1] | NAME PLATE | |
| 31 | 39Q6-12361 | [1] | NAME PLATE | |
| 31 | 39Q6-12362 | [1] | NAME PLATE | |
| 32 | 39Q6-41800 | [2] | RIVET | |
| 33 | P220-430204 | [1] | PLUG-HEX | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4115 |
| K1. | 39Q6-12180 | [1] | CARRIER ASSY KIT 1 | SEE ILLUST |
| K2. | 39Q6-12250 | [1] | CARRIER ASSY KIT 2 | SEE ILLUST |
- Description
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
- Advantage
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
