10-50 Kg Automatic Bag Packing Machine , Open Mouth Bag Granule Packaging Machine
High Capacity and Accuracy Bean / Coffee Bean Open Bag Packaging Machine

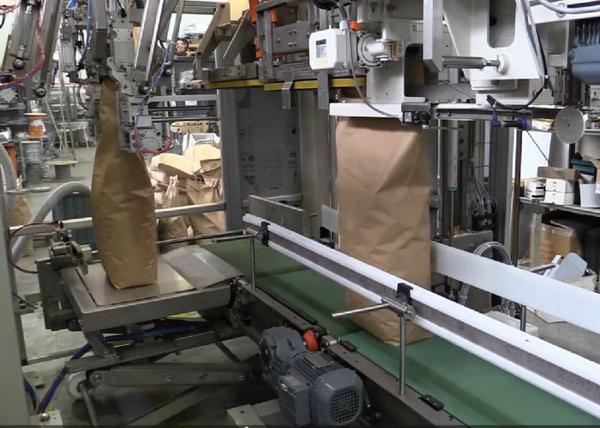

This bagging machine is able to automatically complete bag taking, bag securing, weighing, filling-in, sealing-off (heat-seal/sewing), and conveying all at once.
Main Features of Bean packaging machine:
Suitable packages: all kinds of preformed open-mouth bags for 10-50kg products.
Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
Easy to adjust: only about several minutes to change different bags.
Frequency control: speed can be adjusted by frequency convertor within the range.
High automation: unmanned in weighing and packaging process.
Key Technical Data:
|
Weighing accuracy |
±0.2% |
|
Filling Volume |
10-50 kg |
|
Capacity |
300-1200 bags/h |
|
Working Temperature |
-15℃~45℃ |
|
Power |
6kw |
|
Driving Power Source |
380V 50HZ |
|
Compress Air Pressure |
0.6~0.8Mpa |
PLC Controller Advantage
a. You can write a program by yourself
b. You can adjust the machine that don't need stop machine.
c. can fault display on machine, and has Fault alarms.
d.10 bags parameters can be stored.
e. accuracy is higher than micro computer, it is can be up to 0.5%
