Automatic Valve Bag Packing Machine For Joint Mixture / Tile Adhesives Filling 25 / 50 KG
Valve Bag Filling and Packing Machine for Joint Mixture and Tile Adhesives 25 / 50 KG

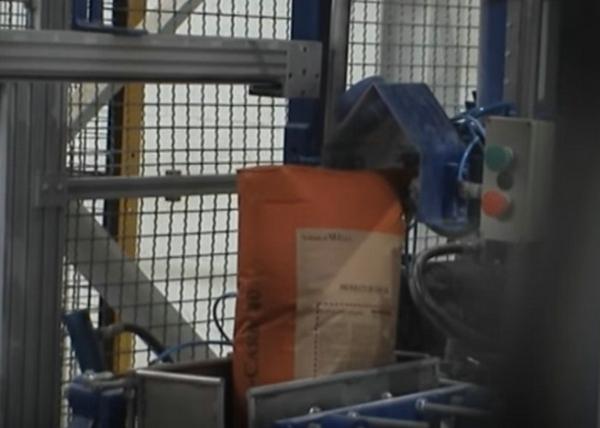

Automatic Bag-Fetching Manipulator:
The valve bag is sucked up by the suction cup, and the manipulator stretch open the bag mouth to insert the bag into the material discharge hole. The vacuum of the standard suction cup is generated by the suction system. This system can give timely feedback of product status to ensure that each bag is accurately placed to the packaging machine discharge hole.
Bag Magazine (Empty bag depot):
It is big enough to keep 120 empty bags here and there is still place more bags. This bag magazine coordinates the automatic bag-fetching manipulator to realize fully automatic operation of bag taking. When the present batch of bags are used up, the next batch will be automatically replenished. The operator on site can put the bags into bag magazine while the machine is running. So there is no need to stop the production for supplement which will ensure continuous packing.
Main Parameters:
| Packing range | 10-50 kg |
| Packing speed | 5-8 bags/min. |
| Packing accuracy | ±0.5~1% |
| Valve hole size | 50 mm (2’) suitable, filling spout |
| Valve hole length | 90-165 mm |
| Bag length | 90-180 mm |
| Bag height | 300-900 mm |
The PVPE (Pneumatic Valve Packing Equipment) is an air flow bagger designed to fill dry solids, like granulated pellets, cement, adhesives, renders, powders, small aggregates into valve bags. The PVPE works on the basis of air fluidisation of the product and differential pressure resulting in product flow into valve bags. The PVPE Packer weighs the bag and contents as it is being filled. The packing speed relates to material ratio, fluidity, granularity, humidity, etc.
This equipment can also be customized as per different customers’ special requirements.
