Industry Battery Transfer Cart Trackless Facility Flatform Truck 360 Degree Rotate
Battery Powered Transfer Cart Trackless Facility Flatform Truck For Industry

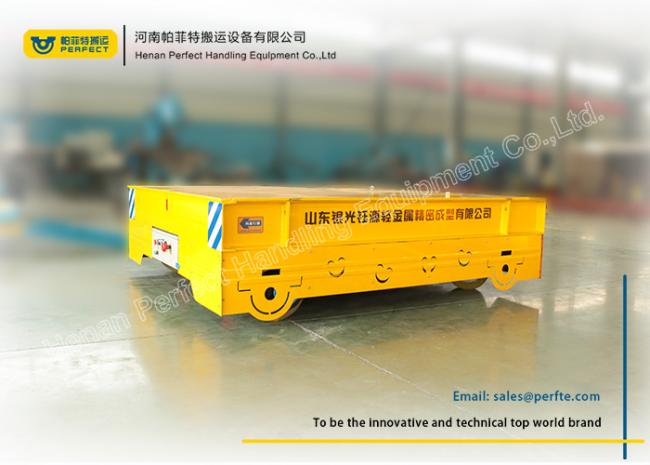

Introduction of Battery Powered Transfer Cart
Our this type of transfer carts are powered by battery which installed inside the car. The current is supplied to pulling motor through electric control system thus to make the car start, stop, move forward, move backward, turn around and change speed , etc.The car is also could run on L-type, S-type and curved track. It is easy for this type of car to rotate 360 degree on the cement floor. It is suitable for all kinds of transport occasion since its travel distance is unlimited and low requirement to the track. You just need remember to maintain regularly.
Parameters of Battery Powered Transfer Cart
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

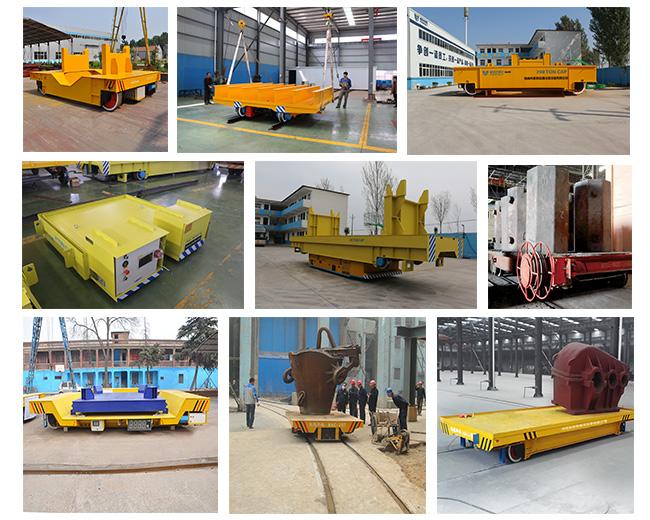

Application Fields of Battery Powered Transfer Cart
We are professional manufacture handling equipment company, we can produce all kinds of transfer cart according our client's requirement. The trailer carts are mainly used to move material from one place to another. Our products are widely applied in metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coil industry, paper mills, metal working, warehouse and so on. Our products are applied in workshop to improve working effciency.
Advantages of Battery Powered Transfer Cart
1. This battery powered transfer cart is no rail so it is flexible to move,it could 360 degree rotate.
2. It is powered by battery so it is save for worker to operate.
3. Running distance is unlimited.
4. Low requirement to the track.
5. Suitable for all kinds of transport occasion.
Our Company
We are professional design and manufacture transfer cart company in China and in this fields over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO. With the development of our company, we start our international business trade and have exported to US,Germany,Thailand,Netherlands,South Africa, Syria, Turkey, Nepal , etc. over 50 countries.
How to choose a transfer cart?
If you need to move heavy duty goods bay to bay,then you must need our product.There is no doubt that it will improve your working effciency.Please tell us some data as below,we will design a suitable transfer trailer for you.
1. What material/cargo are you going to transfer?
2. What load capacity do you want?
3. What kind of ground does the transfer cart operate on? (rails or cement floor)
4. What’s the specification table size ? (length,width and height)
5. How long is the running distance?
6. How many working hours do you have everyday?
7. Or do you have any other special requirement?(Anti-explosion,anti-high tempearture)
