Short Distance Heavy Industrial Transfer Car 6T For Productions Line
Heavy Industry Handling Trolley for Productions Line with Short Distance
Introduction
The BTL series steel factory metallurgy transfer vehicle is driven by manual or other power machine. Boosting driven device and traction device is optional for convenience. According to the condiction,you can choose track or trackless type transfer vehicle to work in with the tractor. This type of steel factory metallurgy transfer vehicle has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry, warehouse and logistics transportation etc. Meanwhile, it has the advantages of high bearing capacity, high efficiency, and cost competitive.
Application of Towed Type Railroad Heavy Transporter
Our towed type railroad heavy transporter is suitable for various industries such as:
For Steel Mill Transportation: Transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc
Characters
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Suitable for All Kinds of Weight The battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
Technical Parameters
| Model | BTL-2t | BTL -20t | BTL -50t | BTL -100t | BTL -150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
|

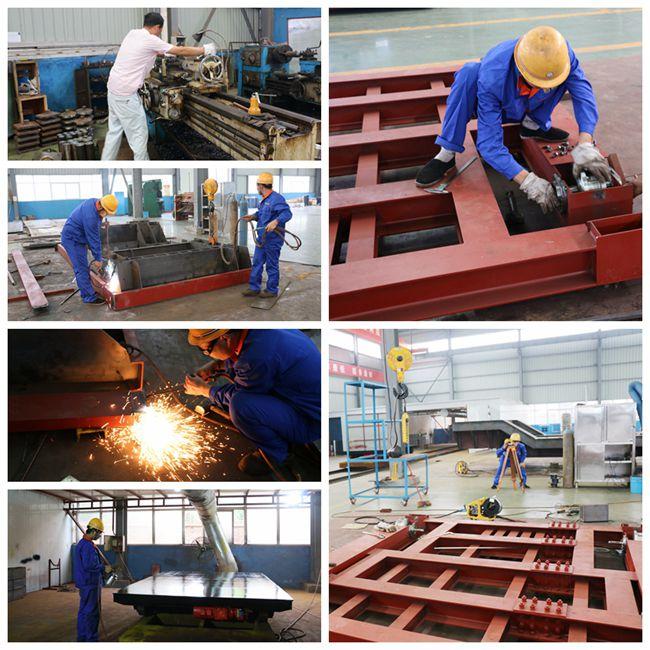

Processing

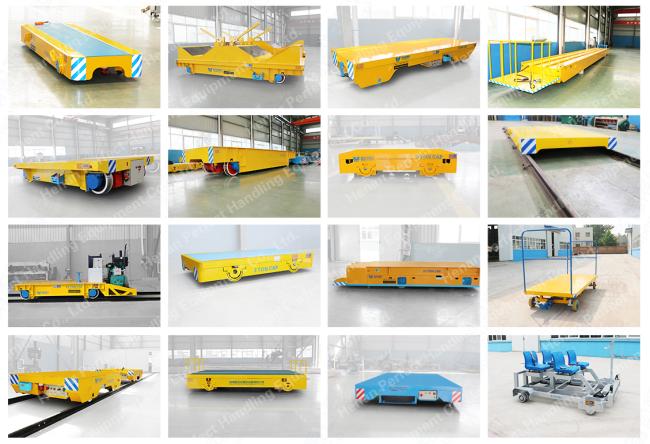

Other Products
Our Strength
Welcome to Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of the transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Carts, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.
Our commitment: The load bearing safety factor of the trolley is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers
During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
If you are looking for Heavy Load Rail Cart, please feel free to contact me.
