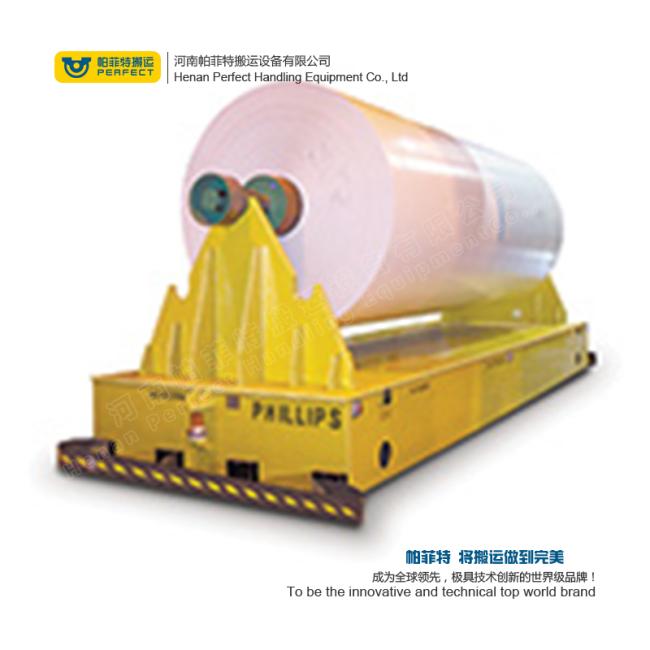

casting factory use1-300t AGV battery powered transfer cart apparatus
custom load of 1-300t AGV electric plate cart apparatus
The AAGV battery powered transfer cart apparatus power source 380V alternating-current is supplied to the traction motor by cable. Cable is collected and released by coiling device mounted underneath the car. The AGV electric plate cart can realize full automatic operation by PLC system. The AGV battery powered transfer cart apparatus can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make it popular for workshop transportation. The AGV battery powered transfer cart apparatus can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the cable reel powered trailer needs to install cable arranger to help with cable rolling.
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
