Propelled Rail Turntable Transfer Heavy Duty Cart Car 1-300T Load Capacity
Propelled Rail Turntable Transfer Heavy Duty Cart Car 1-300T Load Capacity

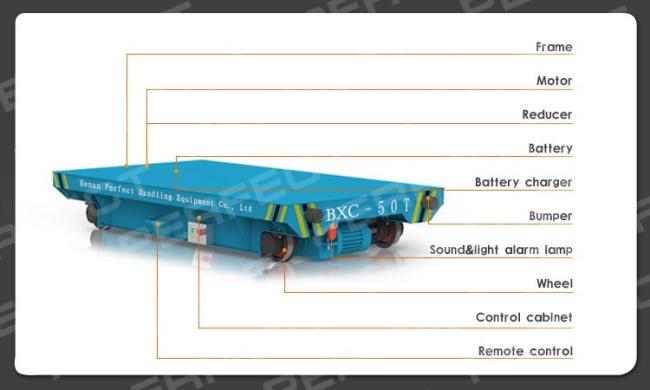

The BXC series manufacturer custom battery propelled rail turntable transfer car. The battery is installed inside the custom battery propelled rail turntable transfer car . The BXC series custom battery propelled rail turntable transfer car is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track.The BXC series custom battery propelled rail turntable transfer car has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. The BXC custom battery propelled rail turntable transfer car is available in inflammable and explosive environment or used as ferry car. The BXC series custom battery propelled rail turntable transfer car is suitable for long distance transportation and low frequency, since its travel distance is unlimited and low requirement to the track.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
-
The electric transfer trolley body is packed with tarp, the electric trolley handles coils wheel and parts will be packed with wooden case.
-
For lenght is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the electric trolley handles coils is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
- Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
