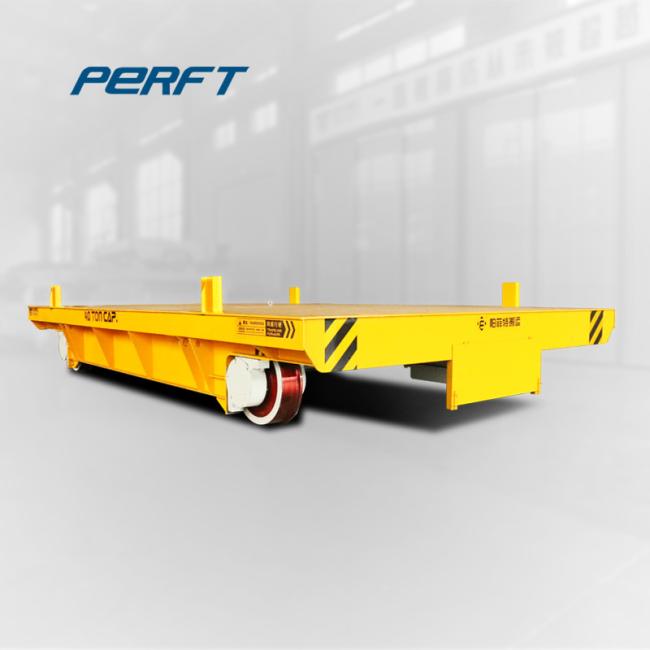

Battery Powered ISO Material Transfer Cart 20m/Min
High qualioty Factory use cart With Battery Powered Transfercart
Introduction
It can avoid the vehicle from damaging and shortening using time. When the cart is working, it must be steadily travel, steadily start and slowly stop. This cart is powered by cable. The power source 360V alternating current is transported to the traction motor by cable. The center electric control system make the vehicle to start, stop, move forward and move backward. The voltage is safe 36V. Cable is collected and released by coiling device mounted underneath the car. It's cost-saving and long-distance running and doesn't need special rail requests.
Descraptions
Parameters
|
Modle
|
BWP-2T
|
BWP-10T
|
BWP-30T
|
BWP-50T
|
BWP-80T
|
BWP-100T
|
|
Table Size (m)
|
2.0*1.5*0.45
|
2.3*2.0*0.55
|
3.5*2.2*0.7
|
5.5*2.6*0.8
|
6.5*2.8*0.95
|
6.6*3.0*1.2
|
|
Power
|
Maintenance Free Battery
|
|||||
|
Wheel Base
|
1080mm
|
1650mm
|
1650mm
|
2000mm
|
1950mm
|
2000mm
|
|
Wheel Dia.
|
250mm
|
350mm
|
450mm
|
600mm
|
600mm
|
600mm
|
|
Running Speed
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
|
Motor Power
|
2*1.2kw
|
2*2.2kw
|
2*5.5kw
|
2*7.5kw
|
30kw
|
40kw
|
|
Battery Capacity
|
250Ah
|
250Ah
|
450Ah
|
500Ah
|
800Ah
|
1000Ah
|
|
Battery Volatge
|
24v
|
48v
|
48v
|
48v
|
72v
|
72v
|
|
Max Wheel Load
|
14.4Kn
|
42.6Kn
|
110.4Kn
|
174Kn
|
185Kn
|
190Kn
|
|
Reference weight
|
2.3t
|
4.2t
|
6.8t
|
8t
|
14.6t
|
26.8t
|
Customization of Flexible Turning Transfer Cart
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Floor Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
