2.0mm Waterproof PVC APVC Plastic Roofing Sheet For Farm Plant Channel

Description of PVC Roof Tile:

1) PVC trapezoidal tile:
Mainly used for herringbone roof, roof in the middle, covered with ridge tile connection. If the need for roof insulation, the following tile can be extended after bedding. Then cover the tile above the extension, with a self tapping screw into the body, fixed in the steel purlin above. Type 840 Watt point, high water yield and no leakage during rain.

2) PVC corrugated tile:
It is the best material for building greenhouses in the form of arches. It is built on the large-span roof, without deformation, fast construction, safe and convenient, and does not need longitudinal lap when construction is allowed.

Features of PVC Roof Tile:

1) Fire retardant: B1 grade

2) Anti-corrosion: It resists chemical corrosion and its life span is over 3 times longer than zinc panels.

3) Excellent Heat Insulation: The thermal conductivity is 0.22, it is about 1/3 of clay roof tile, 1/2000 of 0.5mm color steel sheet. Keeping the best heat-insulation performance without any heat insulation facilities.

4) Good sound-proof and noise-proof : Effectively obstruct noise generated by rain, wind, etc. Lower 30DB than steel sheet.

5) Excellent insulation resistance: More safer than steel sheet at the areas of thunderstorm and near high-tension cable.

6) Environment friendly : Neither asbestos nor radioactive element, can be completely recycled to meet the requirement of environment protection.

7) Light Weight: Easy installation and transportation to save cost.

Applications of PVC Roof Tile:

Yiquan PVC Roof Tiles provide a high-quality, durable, and environmentally friendly solution for all types of construction projects. With easy installation, a variety of colors, and a long lifespan, the tiles are perfect for both residential and commercial projects. The tiles are also easy to maintain and provide superior protection against extreme temperatures and weathering.

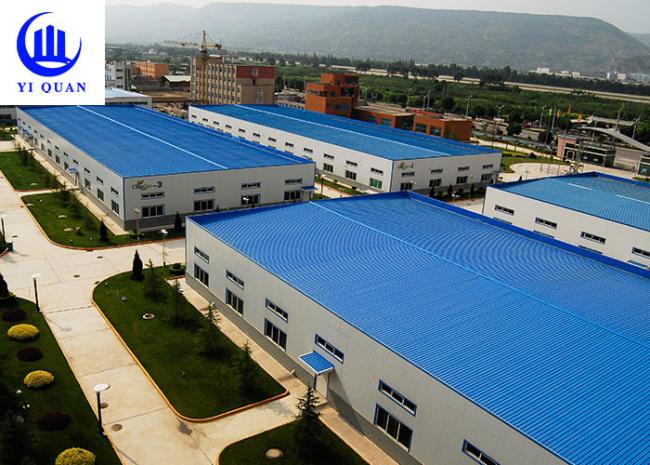

High grade roofing materials for high-end factories, steel structure factories, warehouses, agricultural markets, market channels, car sheds, etc. Especially in corrosive factories such as chemical factories, smelters, ceramic factories, soy sauce factories, fertilizer factories, printing and dyeing factories, organic solvent factories, acid and alkali making factories.

Container Load:

Installation:

1. PVC tile installation should choose appropriate purlin spacing to prevent deformation cracking.

2. The thickness of the pvc roof tiles is≤1.3mm to use the purling space≤600mm.

3. the circular arch roof to use for the purling space≤700mm.the thickness between 1.3mm to 1.8mm of the tiles need to use for purling space ≤700mm.

4. the arched back roof to be ≤800mm.the thickness 1.8mm to 3mm of roof sheet to use for the purling space as ≤800mm and circular arch style to use purling space ≤900mm.

5. The installation of the corrugated pvc roof sheet have to cover two pitch of the sheet area on the width and the trapezium pvc roof sheet to cover one pitch on the width and to cover >250mm on the length.

6. If use tapping screw that need to drill a hole with ratio 2-3mm first.

FAQ:

1. What are the advantages of pvc roof tiles?
A: Excellent corrosion resistance / never rust / heat insulation / light weight / strong toughness / flame retardant.

2. Are PVC roof tiles suitable for extreme weather?
A: Of course it is. The heat resistance value is 0.5 (3 times that of steel). In cold weather, it can keep warm by about 4-6°C compared to outdoors. Can be used at -10 degrees to 70 degrees.

3. How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.

4. Which country we exported to before?

A: We exported our products to Africa, India, Vietnam, Ecuador, Australia, Colombia, Mexico etc.

5. Can you give me the best price?

A: Yes, we can. We are the manufacturer's direct supplier of roof tiles.
