Construction Material PVC Lightweight Plastic Roof Tiles For Corrosive Plant
Price:
Negotiation
MOQ:
100SQM
Delivery Time:
Within 7 days after the payment
Brand:
Yiquan
Product Description
Construction Material PVC Plastic Roof Tiles Panels For Sale
PVC plastic tile based on polyvinyl chloride resin (PVC) as the main raw material, supplemented by UV ultraviolet
resistant agent and other chemical raw materials, after a certain proportion of mixed, made use of advanced technology.
Specially designed for corrosive plant and heavy acid rain area of a new generation of permanent roofing.
Featuer:
1. Lasting color
2. Excellent load-carrying ability
3. Good sound insulation
4. Strong frie resistance
5. Excellent corrosion resistance
6. Good impact resistance and cold resistance
7. Good self-cleaningperformance
Application:
This kind of PVC roofing tile was widely used in the roofs
heat sheds and other fields
Factories
road hoarding
balcony

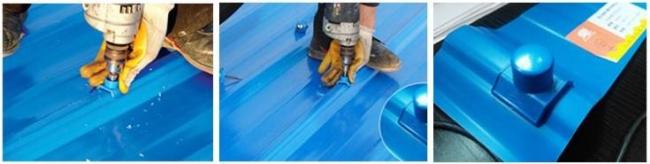

Installation:
| PVC tile installation should choose appropriate purlin spacing to prevent deformation cracking. |
| Water leakage ,specific reference to the following: |
| • The thickness of the pvc roof tiles is≤1.3mm to use the purling space≤600mm. |
| the circular arch roof to use for the purling space≤700mm.the thickness between |
| 1.3mm to 1.8mm of the tiles need to use for purling space ≤700mm. |
| the arched back roof to be ≤800mm.the thickness 1.8mm to 3mm of roof sheet to |
| use for the purling space as ≤800mm and circular arch style to use purling space≤900mm |
|
• The installation of the corrugated pvc roof sheet have to cover two pitch of the sheet area on the width and the trapezium pvc roof sheet to cover one pitch on the width and to cover >250mm |
| on the length. |
| • If use tapping screw that need to drill a hole with ratio 2-3mm first. |
