APVC Plastic Heat Insulation Roof Tiles Garden Pavilion Plastic Spanish Roof Tiles
Price:
Negotiation
MOQ:
500 Sqms
Delivery Time:
1 Week to 10 Days
Brand:
Yiquan
Product Description

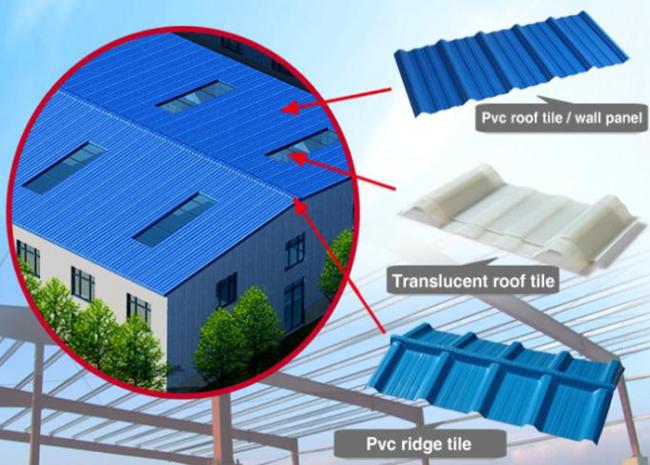

New APVC Plastic Heat Insulation Roof Tiles Garden Pavilion Plastic Spanish Roofing
ASA-PVC Corrugated Sheet is a multi functional material for roofing . Because it is good at aging protection and insulation , it will be a better option for roofing in order to meet customer's requirement
Specifications:
| Name: | Buliding material roof tile |
| Item No. : | Y1130-089 |
| Materials : |
Raw PVC material,anti-UV agent and other chemical materials |
| Type : | Corrugate pvc tile |
| Thickness : |
1.5mm /1.8mm/2.0mm /2.5mm/3.0mm |
| Width : |
840mm/930mm/1120mm/1130mm |
| Length : |
5800mm,11800mm or customized according to requirement of customers |
| Color: | white , blue , pale yellow , green , gray , brick red,meet custom demand |
| Layer: |
1 layer,2 layer,3 layer,4 layers |
| Life span: |
50years
|
Application&Featuers:
| Application | Roof Tiles Features |
| 1. Wearhouse | 1. Light weight |
| 2. Factory roof | 2. Anti corrosion |
| 3. Steel plant | 3. Acid resistant |
| 4. Farm plant | 4. Thermal insulation |
| 5. Channel | 5. Sound insulation |
| 6. Market access | 6. Heat insulation |
| 7. Carport | 7. Fireproof |
| 8. Pig farm | 8. Convenient installation. |
Installation:
| PVC tile installation should choose appropriate purlin spacing to prevent deformation cracking. |
| Water leakage ,specific reference to the following: |
| • Plastic Spanish Roof Tiles thickness of the pvc roof tiles is≤1.3mm to use the purling space≤600mm. |
| the circular arch roof to use for the purling space≤700mm.the thickness between |
| 1.3mm to 1.8mm of the tiles need to use for purling space ≤700mm. |
| the arched back roof to be ≤800mm.the thickness 1.8mm to 3mm of roof sheet to |
| use for the purling space as ≤800mm and circular arch style to use purling space≤900mm |
| • Plastic Spanish Roof Tiles installation of the corrugated pvc roof sheet have to cover two pitch of the sheet area on |
| the width and the trapezium pvc roof sheet to cover one pitch on the width and to cover >250mm on the length. |
| • If use tapping screw that need to drill a hole with ratio 2-3mm first. |
