Light Weight PVC Roof Tiles Shining Color for Commercial Parking Lots
Light Weight PVC Roof Tiles Full New PVC Material Shining Color Roof Sheet

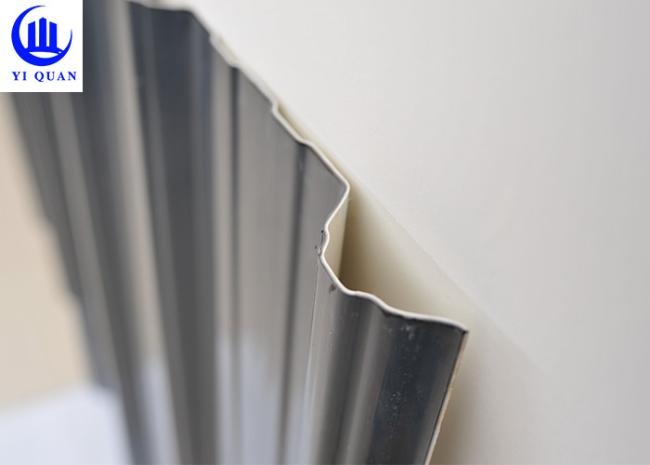

The product is a new generated permanent roofing material designed for the corrosive plant and heavy acid rain areas. It adopts the super weather resistant plastic layer composite with the PVC resin featured by lasting bright color, excellent weather resistance, high strength, acid and alkali and chemical solution resistance. It is the latest variety to replace the traditional PVC wave tile, color steel tile, zinc tile, aluminum tile and cement tile, especially to be the roofing material in the acid rain area and corrosion industry with significant effect.
SPECIFICATION:
| Type | APVC Anti-corrosive Composite Roof Tile | ||||||
| Color | blue, green, white or customized | ||||||
| Total width (mm) | 1120 | ||||||
| Practicality width(mm) | 1060 | ||||||
| Thickness(mm) | 1.5±0.1 | 1.8±0.1 | 2.0±0.1 | 2.5±0.1 | 3.0±0.1 | ||
| Weight(kg/m2) | 2.9±0.1 | 3.4±0.1 | 3.8±0.1 | 4.8±0.1 | 5.7±0.1 | ||
| Length(mm) | 5800 , 11800 or customized (must be fit for the container) | ||||||
| Wave Distance(mm) | 210 | ||||||
| Wave Height(mm) | 26 | ||||||
| Container Loading capacity | Thickness(mm) | SQ.M./20 FCL (22 T) | SQ.M./40 FCL (26 T) | ||||
| 1.5 | 7500 | 9100 | |||||
| 1.8 | 6200 | 7600 | |||||
| 2.0 | 5600 | 6800 | |||||
| 2.5 | 4500 | 5400 | |||||
| 3.0 | 3700 | 4500 | |||||
Features of Heat Insulation Roof Tile:
| Fire retardant: B1 grade |
| Anti-corrosion: It resists any chemical corrosion |
| Water proof: 100% water proof |
| Impact capacity: resist impact, tensile and hardly breakable. |
| Weather resistant: The UV agent mixing in the corrugated sheet, which can truly resist the damage of ultraviolet ray. The service life of PVC corrugated sheet is especially long. |
| Light weight: The weight is light; it can save the other roofing material |
| Beauty: It has rich and bright colors: |
| Environment friendly: It does not contain asbestos without carcinogen released. |
Application:
Structure Roofing and Walling , Commercial , Industrial , Residential , Markets , Parking Lots and etc .
