Terracotta 219mm Wave Upvc Asa Synthetic Resin Roof Tile

Price Negotiable

Price: negociation

MOQ: 1000 sqm

Delivery Time: 7 to 10 days

Brand: yiquan

Product Description

Asa Synthetic Resin Roof Tile Upvc 219 mm Wave Space Roof Tile

Introduction:

ASA adopts and most advanced co-extrusion technology for one-step composition.

The surface layer is ASA weather-resistant material, and the bottom layer is made with

corrosion-resistant polyethylene and other materials.

Application:

sheds,carports,stadiums,villas,holiday villages,mobile homes,prefabricated houses,

garden pavillion,farm stay, many other types of residential and commercial buildings.

Tech Date of the Synthetic Resin Tiles
Tensile strength	42.6 MPa	Chemical resistance properties	Acetic aced 10%(physical volume ratio)	(23°C±2 °C),2h.no permanent abrasion or change
High-low temperature change	-0.11%		Ether 70% (physical volume ratio)
Vertical burning	FV-0		Ethylene-blue 1% (weight ratio)
Oxygen index	40%		NaOH 10% (weight retio)
Water absorption rate	0.05%		Hypochlorous Natrium 15% (weight retio)
Nail force	46N	Heat-resistance		60°C,6h no deformation no viscousness
Flexural load	800N no crack	Cold-resistance		-35°C,6h, no crack in surface
Flexural strength	77 MPa

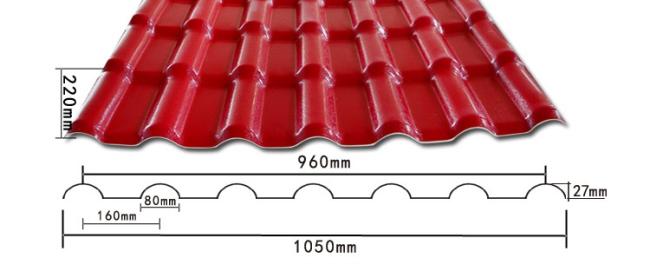

Specification:

Type	ASA Synthetic Resin Roof Tile
Total width(mm)	1050
Practicality Width(mm)	960
Thickness(mm)	2.5±0.1		3.0±0.1
Length(mm)	Customized (must be accorded to the times of 219mm)
Weight(kg/m2)	5.0±0.1		6.0±0.1
Wave Distance(mm)	160
Wave Height(mm)	30
Pitch(mm)	219
Specifications	Sound and heat insulation,Colorfast and 25 Years Warranty Period
	Fire Resistance,100% Waterproof
Container Loading capacity	Thickness(mm)	SQ.M./20 FCL (22 tons)		SQ.M./40 FCL
				(26 tons)
	2.5	4500		5300
	3	3700		4400
