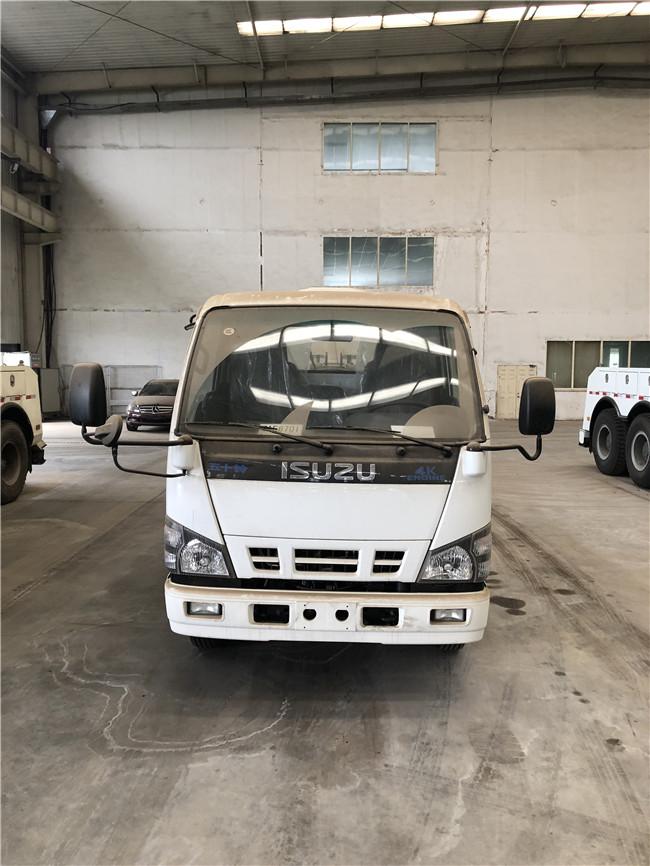

ISUZU Chassis 3-4 ton's Winch Road Wrecker Truck with 4200×2300mm Flatbed
Price:
Factory price, Negotiable
MOQ:
1 SET
Delivery Time:
30 working days
Brand:
YD
Product Description
ISUZU Chassis 3-4 ton's Winch Road Wrecker Truck with 4200×2300mm Flatbed
Tow truck is also called tow truck wrecker, road wrecker,truck wrecker,road recovery truck,recovery truck vehicle,rotator wrecker,flatbed wrecker,flat bed tow truck,etc.
Main Specification
(1). Capacity: 2-10 ton flatbed wrecker,11-30 ton rotator wrekcer.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 tow truck wrecker
(4). Truck chassis: option japan and china brand
Specification
| Complete Vehicle Parameter | |
| Vehicle | I S UZ U wrecker tow truck |
| Overall dimension (mm) | 5997×2300×2200 |
| Flatbed dimension (mm) | 4200×2300 |
| Curb weight (kg) | Appro×3300 |
| Flatbed towing (kg) | Appro×3000 |
| Under wheel lift (kg) | Appro×3000 |
| Wheel base (mm) | 3300 |
| Max speed (km/h) | 90 |
| Standard configuration | 1) Flatbed weighing capacity 3 ton,widely used in transporting cars, vans, SUV, mini vans. |
| 2) Hydraulic control flatbed extend and rollback. | |
| 3) A 4 ton winch, 25m steel rope. | |
| 4) Hydraulic tail plate,thickness 8mm,length 1m. | |
| 5) Rear carriage arm towing capacity 2 ton, hydraulic control lifting. | |
| 6) Rear tail lights LED,both sides electronic lights. | |
| 7) 2pcs auxiliary wheels | |
| 8) 4pcs bunding belt | |
| Chassis Parameter | |
| Cabin | Single row cabin,air conditioner, cabin roof warning light, 2 passengers |
| Traction system | 4×2 |
| Engine |
Brand : IS UZ U |
| Transmission | 5 forward,1 reverse, manual operated |
| Tire model | 7.00-16 |
| No.of tires | 6pcs, and a spare tire |
