Double Scissors Narrow Aisle Reach Forklift , 1 Ton Electric Forklift 24V 560AH
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
Fork reach double scissors narrow aisle truck 1ton capacity 4.5m to 6m
Quick Details:
Product name: Fork reach double scissor narrow aisle truck CQDH15C
Capacity: 1000kg
Lifting height: 4500/5000/5500/6000mm
Free lift: 1575/1700/1825/2000mm
Reach distance: 1200mm
Aisle width for pallets 1000*1200 crossways: 2971mm
Aisle width for pallets 800*1200 lengthways: 3056mm
Turning radius: 1718mm
Battery: 24V560AH
Advantages:
-
Low center of gravity ensures the stable operation.
-
The hydraulic steering system, make the steering flexible.
-
Vertical driving wheel has small turning radius and easy to maintain. The motor structure is water-proof and dust proof.
-
The scissor reach forks is operated by electric controller, which makes operation stable and no impact.
-

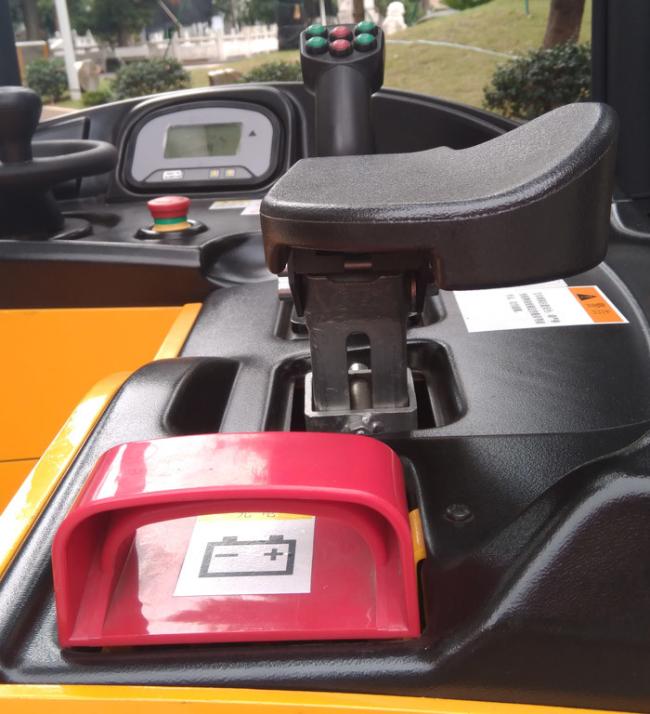

Adjustable armrests for drivers of different heights.
-
Shock absorber to reduce noise.
-
Stepless speed control and regenerative braking.
| SPECIFICATIONS | ||
| Model | CQDH15C | |
| Power | battery | |
| Load capacity/rated load | kg | 1000 |
| Load center distance | mm | 500 |
| Load distance, centre of drive axle to fork | mm | 135 |
| Tyre size, front | mm | 280*82+160*60 |
| Tyre size, rear | mm | 125*82 |
| Tilt of mast/fork carriage forward/backward | Grad | 2/5 |
| Height, mast lowered | mm | 2185/2345/2505/2675 |
| Free lift | mm | 1575/1700/1825/2000 |
| Max. lifting height | mm | 4500/5000/5500/6000 |
| Height, mast extended | mm | 5535/6035/6535/7035 |
| Height of overhead guard | mm | 2246 |
| Overall length | mm | 2609 |
| Overall width | mm | 1308/1040, 1370/1040 |
| Length to face of forks | mm | 1539 |
| Fork dimensions | mm | 35/100/1070 |
| Reach distance | mm | 1200 |
| Fork height, lowered | mm | 130 |
| Distance of "X" | mm | 350 |
| Overall length(excluding the fork) | mm | 1868 |
| Ground clearance, centre of wheelbase | mm | 65 |
| Aisle width for pallets 1000*1200 crossways | mm | 2971 |
| Aisle width for pallets 800*1200 lengthways | mm | 3056 |
| Turning radius | mm | 1718 |
| Travel speed, laden/unladen | km/h | 6.5/7 |
| Lift speed, laden/unladen | m/s | 0.135/0.16 |
| Lowering speed, laden/unladen | m/s | 0.15/0.12 |
| Battery | V/Ah | 24/420(560) |
| Service weight | kg | 2730/2830/2930/3030 |

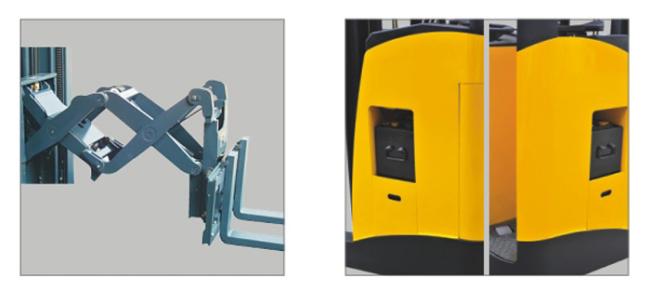

Double scissors forks Side way battery, replace conveniently.
The battery upsides cover makes you
easy to fill the battery.
