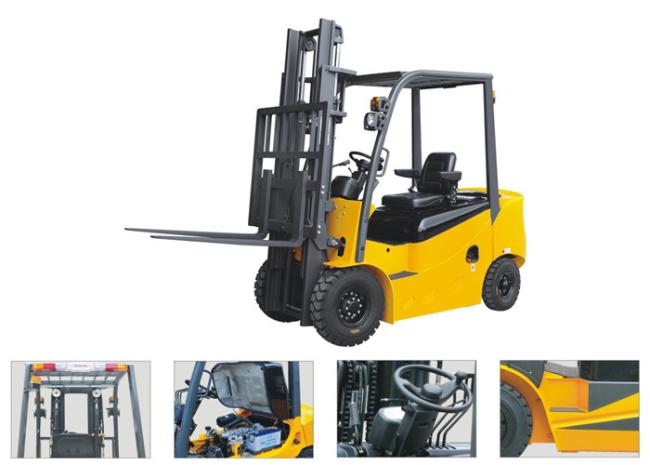

1.5 Ton Small Electric Forklift , 4 Wheel Drive Forklift CE Certification
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
Wholesale mini 1.5ton four wheel forklift with CE certificate
Quick Details:
Model: Gas powered four wheel forklift FG15
Capacity: 1500kg
Lift height: 3000 to 6000mm
Load centre distance: 500mm
Tyres type: pneumatic
Fork dimensions: 35/100/1070mm
Aisle width for pallets: 3700/3500mm
Turning radius: 1885mm
Travel speed: 16km/h
Advantages:
Gas four wheel forklift truck offers different engine selection with low emission.
Gas four wheel forklift truck engine cover with gas-filled cylinders and sound absorbing material.
Gas four wheel forklift truck with lowering speed safety valve.
Gas four wheel forklift truck options: 1. Up set exhaust; 2. cabin with heater.
Gasoline four wheel forklift with multifunction digital display instrument.
Different engine type can be choosen.
Option for gasoline four wheel forklift: high position exhaust.
| SPECIFICATIONS | ||
| Model | FG15 | |
| Power | Gasoline | |
| Operation type | seat | |
| Load capacity | kg | 1500 |
| Load center distance | mm | 500 |
| Max. lifting height | mm | 3000-6000 |
| Load distance, centre of drive axle to fork | mm | 395 |
| Wheelbase | mm | 1580 |
| Axle loading, laden front/rear | kg | 3280/900 |
| Axle loading, unladen front/rear | kg | 1183/1497 |
| Tyres type | pneumatic | |
| Tyre size, front | mm | 590*179/577*162 |
| Tyre size, rear | mm | 470*137/461*127 |
| Tread, front | mm | 890 |
| Tread, rear | mm | 920 |
| Tilt of mast/fork carriage forward/backward | Grad | 6°-12° |
| Height, mast lowered | mm | 2015-2610 |
| Height, mast extended | mm | 4067-7067 |
| Height of overhead guard(cabin) | mm | 2030 |
| Seat height/stand height | mm | 1043 |
| Overall length | mm | 3401 |
| Length to face of forks | mm | 2331 |
| Overall width | mm | 1100 |
| Fork dimensions | mm | 35/100/1070 |
| Fork carriage width | mm | 1088 |
| Ground clearance, laden, below mast | mm | 105 |
| Ground clearance, centre of wheelbase | mm | 115 |
| Aisle width for pallets 1000*1200 crossways | mm | 3700 |
| Aisle width for pallets 800*1200 lengthways | mm | 3500 |
| Turning radius | mm | 1885 |
| Internal turning radius | mm | 435 |
| Travel speed, laden/unladen | km/h | 0-16 |
| Lift speed, laden/unladen | mm/s | 480 |
| Lowering speed, laden/unladen | mm/s | ＜600 |
| Max. drawbar pull, laden/unladen | N | 15120 |
| Max. gradeability, laden/unladen | % | 20/27 |
| Acceleration time, laden/unladen | s | 3/4 |
| Engine type | K21/491 | |
| Engine power | kw | 31/41 |
| Rated speed | R/Min | 2300/2500 |
| Type of drive control | mechanical/hydraulic | |
| Operating pressure for attachments | Mpa | 17 |
| Sound level at the driver's ear acc. to DIN 12053 | dB(A) | ＜82 |
| Service weight | kg | 2680 |
