SUS304 / 316 Gavlanized Iron Wire Mesh 2" X 2" Corrosion Proof For Greenhouse
Q235Iron SUS304 316 Stainless steel Welded Wire Mesh in Green White Yellow
Description:
The welded wire mesh is welded by excellent low-carbon steel wires and passivated and plasticized through cold plating (electroplating), hot dipping and PVC plastic coating. With flat surface, even mesh count, firm welding spots and stable structure, it features its strong completeness, partial good machining performance, stability, excellent corrosion resistance and rush prevention.
Materials & Finishes
1. Welded Wire Mesh Material: Low carbon steel wire,Stainless steel wire
2. Welded Wire Mesh Type:
Electro galvanized after or before welded wire mesh
Hot dippd galvanized after or before welded wire mesh
PVC coated welded wire mesh
Stainless steel welded wire mesh
3. Advantage: good corrosion resistance and oxidation resistance
4. Application: Strengthen protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries,building construction,General Use
5.Specification:
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Galvanized is not a metal or alloy; it is a process in which a protective zinc coating is applied to steel to prevent rusting. In the wire mesh industry, however, it is often treated as a separate category because of its wide spread use in all types of applications. Some of the more popular uses and applications of galvanized wire mesh are listed below:
- Fencing, caging & enclosures
- Farm, garden & agricultural use
- Window & safety guards
- Archeological use
- Building & construction projects
- Infill panels
- High security applications
- Landscaping & gabions
- Wall & stone retention
- Greenhouse use
- Particle separation
- General industrial use

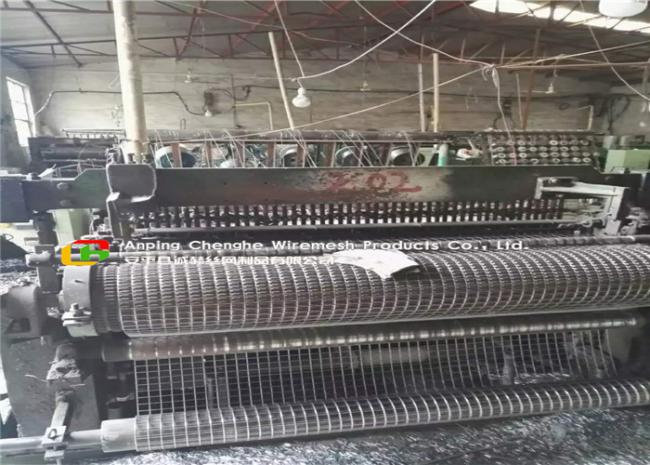

Product Picture
