Serrated Bar Hot Dipped Galvanized Steel Grating Flat Weft Arrangement For Drainage Drain
With Serrated bar Hot Dipped Galvanized Steel Grating for Drainage Drain
specification:
1. what is steel grating ?( Drainage Drain grating ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
Steel grating plate, also known as steel grating, grille plate, is flat steel in accordance with a certain
spacing and cross bar arrangement, and welded into a middle with a square grid of a steel products, mainly used to
| Bearing Bar Spacing | Cross Bar Spacing | Bearing Bar Specification(Depth×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing Bar Spacing | Cross Bar Spacing | Bearing Bar Specification(Depth×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
steel grating exporter --- galvanized catwalk steel grating
- power station platform grating
- port platform floor grating
- spray booth floor grating
- water channel grating
- steel stair treads grating
- trench cover grating
Advantages of our company.
-Independent automatic steel grating product line with huge workshop and devices to ensure delivery time.
- Over 10 years' experience in hot-dipped galvanizing and 10 years'steel grating manufacture
- Quality guarantee under the control of ISO9001 2000 quality system
- Professional technology and design teams, chart as customers' requirements.

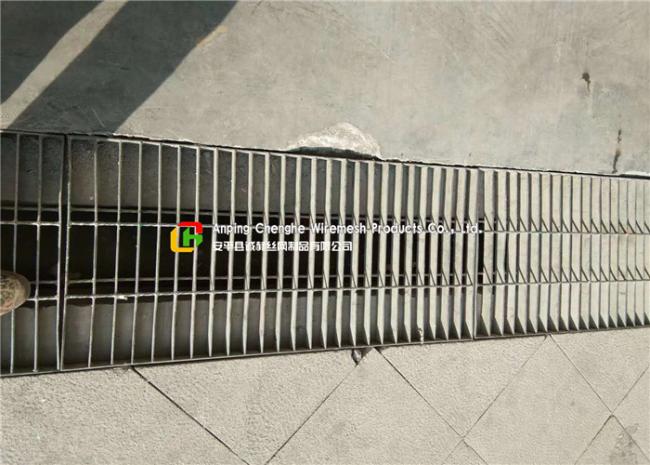

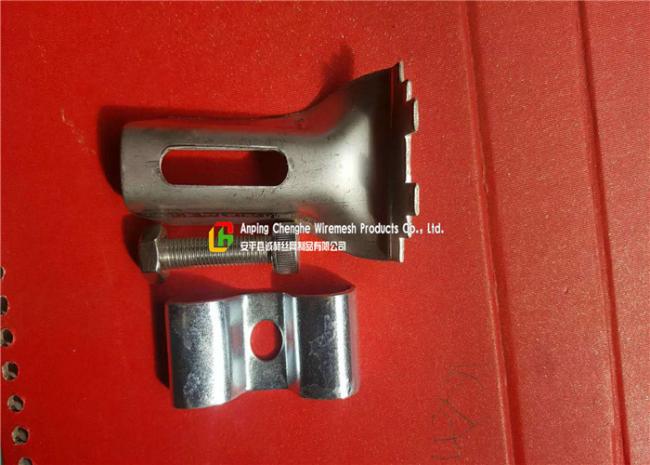

Product Picture
