Twisted Square Bar Hot Dipped Galvanized Steel Grating Mechanical Interlock
With Twisted Steel Bar 303/30/100 Hot Dipped Galvanized Steel Grating for Platform
specification:
1.what is steel grating ?( Platformgrating ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
Steel grating plate, also known as steel grating, grille plate, is flat steel in accordance with a certain
spacing and cross bar arrangement, and welded into a middle with a square grid of a steel products, mainly used to do ditch cover Plate, steel platform plate, steel ladder of the step board. The bar is generally made of twisted square steel.
Twisted steel bars are the steel bars which comes with the right combination of Strength & Flexibility. This elongation helps to protect any construction structure.The mechanical interlock between steel and concrete is critical in reinforced concrete. Early concrete reinforcing was sometimes smooth and square. This shape did not create much friction to make a solid interlock. One solution to this problem was to twist the bar like a corkscrew with creates many teeth for a strong mechanical lock. The primary drawback to doing this is that the twisting causes the steel to work harden and become more brittle.
| Bearing Bar Spacing | Cross Bar Spacing | Bearing Bar Specification(Depth×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing Bar Spacing | Cross Bar Spacing | Bearing Bar Specification(Depth×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
steel grating exporter --- galvanized catwalk steel grating
- power station platform grating
- port platform floor grating
- spray booth floor grating
- water channel grating
- steel stair treads grating
- trench cover grating
Detail:

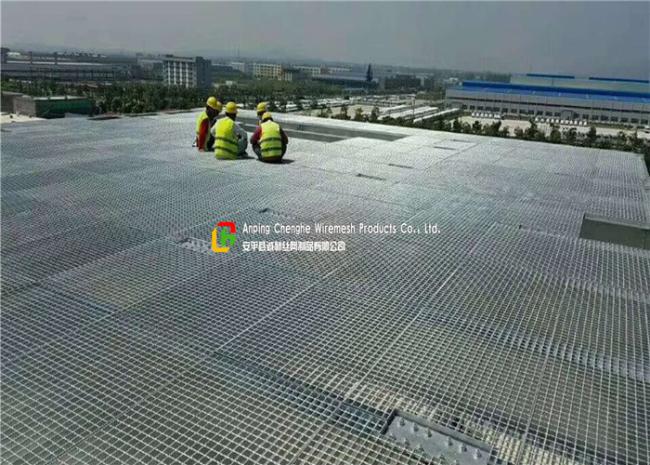

Product Picture
