Strong Impact Resistance Hot Dipped Galvanized Steel Grating For Walkway / Drain
With Angle Bar and Hinge Hot Dipped Galvanized Steel Grating for Walkway or Drain
specification
With Angle Bar and Hinge Hot Dipped Galvanized Steel Grating is the product in accordance with customers requirements that is lined by load flat steel and horizontal rod alternately in a certain space, welded into primary plate in the high voltage resistance welding machine, then through the deep-processing of such working procedures as cutting, slitting, tapping, bordure, etc.
Hot Dipped Galvanized Steel Grating has strong impact resistance, strong corrosion resistance and heavy load capacity, elegant and beautiful, and has excellent performance in municipal subgrade and steel platform construction projects. The high cost performance is the construction project of the hot galvanized steel lattice plate widely used in the pavement of the old and new subgrade.
It has long service life is, it is generally within the range of 40 years -50 years. The hot-dip galvanized steel plate is a very good steel frame structure and bearing platform without the participation of the destructive factors.
| Hot Dipped Galvanized Steel Grating | |
| Material Standard |
ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Packing | 1.LCL: packed with plastic film then on the pallets 2.FCL: Nude packing 3.Other special package according to customers' requirements. |
Application:
Light chemical industry, Petro-chemistry, Machinery industry, Textile chemistry, Port engineering, Oil and grease chemistry, Agriculture husbandry, Horticulture, Steel industry, Waste disposal, Food processing, Aquatic breeding, Fertilizer industry, Pharmaceutical industry, Parking lots, Cement plants, Oil refinery, Mining and refinery, Power plants, Public utility, Marine engineering, Shipbuilding, Construction material industry, Defense projects, Airport projects, Water plants, Sewage disposal, Paper and pulp industry, Construction industry, Transportation industry, Automotive industry
This kind of steel grates can be embeded into the cement, which can make it more steady. The most important is that, we add a small plate on the frame, then people can lock the steel grating by clips, this also prevent some naugty children open the grates and jump and play in the sewer. Meanwhile, the surface is hot dip galvanized, it can stop it from being rust.
Advantages:
Hot Dipped Galvanized Steel Grating offers the following advantages compared with steel grid sheets:
Hot Dipped Galvanized Steel Grating has light weight, good strength, large carrying capacity and can save materials and cost. It offers good ventilation of light and wind, a modern sense, aesthetic appearance and anti-skid safety. It is also easy to clean, easy to installation and durable for uses.
Primary Competitive Advantages:
- Price
- Product Features
- Product Performance
- Prompt Delivery
- Quality Approvals
- Reputation
- Service
- Small Orders Accepted
- Brand-name Parts
- Country of Origin
- Distributorships Offered
- Electronic Link
- Experienced Staff
- Form A
- Green Product
- Guarantee/Warranty
- International Approvals
- Military Specifications
- Packaging

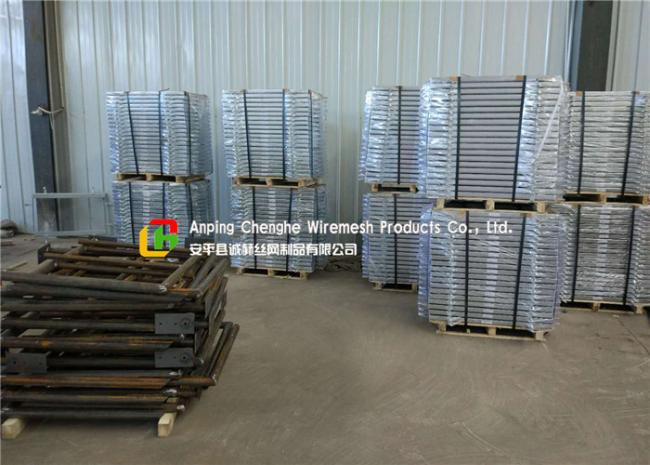

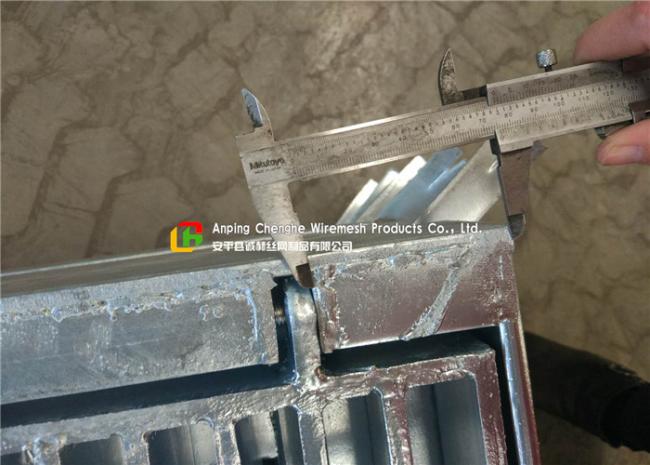

Product Picture
