Hot Dipped Galvanized Heavy Duty Steel Grating For Industrial Plant Floor
Customer Hot Dipped Galvanized Heavy Duty Steel Grating For Parking Lot Industrial Plant
Description:
Welded Heavy Duty Gratings are designed to service applications subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers and airports. Since these conditions can range from light-duty forklifts to heavy-duty truck or aircraft traffic, heavy duty gratings are manufactured in a wide range of bar sizes and spacings.
Standard heavy-duty bar grating is resistance-welded for durability, strength and safety using an automated electric/hydraulic welding process. High temperatures, combined with high pressure, fuse the bearing bars and cross bars together to form a permanent joint.
Product Description
| No. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
| 2 | Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc |
| 3 | Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self color, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |
Applications of heavy duty steel grating
Heavy-duty steel grating is widely used as the floors, lanes and rack accessories in the highway, bridge, parking lot, store shelves for large cargo, industrial plant that often use forklift and the traffic junctions, roads or trails that large trucks often come and go.
| Table 1: Spacing of Heavy-Duty Welded Steel Grating | ||
| Item | Bearing Bar Spacing | Cross Bar Spacing |
| 19-W-4 | 1-3/16" | 4" |
| 19-W-2 | 1-3/16" | 2" |
| 15-W-4 | 15/16" | 4" |
| 15-W-2 | 15/16" | 2" |
| 22-W-4 | 1-3/8" | 4" |
| 22-W-2 | 1-3/8" | 2" |
| 30-W-4 | 1-7/8" | 4" |
| 30-W-2 | 1-7/8" | 2" |
| 38-W-4 | 2-3/8" | 4" |
| 38-W-2 | 2-3/8" | 2" |
| Table 2: Common Mesh Spacing of Heavy-Duty Press-Locked Steel Grating | |||
| Bearing Bar Spacing | Cross Bar Spacing | ||
| mm | mm | ||
| 25 | 50 | 75 | 100 |
| 50 | 50 | 75 | 100 |
| 75 | 50 | 75 | 100 |
| 100 | 50 | 75 |
100 |
| Table 3: Standard Bearing Bar Height of Heavy-Duty Press-Locked Steel Grating (mm) | |||
| Bearing Bar | Bearing Bar | Bearing Bar | |
| 8 mm | 10 mm | 12 mm | |
| 80 | 80 | ||
| 90 | 90 | ||
| 100 | 100 | 100 | |
| 110 | 110 | 110 | |
| 120 | 120 | 120 | |
| 130 | 130 | 130 | |
| 140 | 14 | 140 | |
| 150 | 150 | 150 | |
| 160 | |||
| 170 | |||
| 180 | |||
| 190 | |||
| 200 | |||

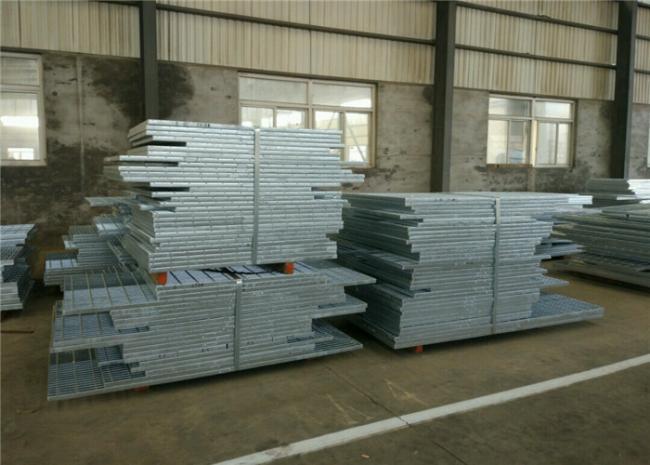

Product Picture
