Plain Type Galvanized Steel Walkway Grating 30 X 3mm Bearing Bar High Bearing Capacity
Plain Type 25 X 5 / 30 X 3mm Bearing Bar Galvanized Steel Walkway Grating
Description:
Galvanized Steel Walkway Grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
Grating Standardizations:
| Countries | National Standards for Grating | Materials | Galvanizing Standards |
| China | YB/T 4001.1-2007 | GB 700-88 | GB/T13912-2002 |
| America | ANSI/NAAMM(MBG531-00) | ASTM(A36) | ASTM(A123) |
| Britain | BS4592-1995 | BS4360(43A ) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
| o | Item | Description |
| 1 | Bearing bar | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
| 2 | Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
| 3 | Cross bar pitch | 38,50,76,100,101.6mm |
| 4 | Material | Q235,A36,SS304 |
| 5 | Surface treatment | Black, hot dipped galvanized, paint |
| 6 | Thickness | Thickness≥3mm, depth ≥19mm |
| 7 | Standard | China: YB/T 4001.1-2007 |
| USA: ANSI/NAAMM(MBG531-88) | ||
| UK: BS4592-1987 | ||
| Australia: AS1657-1985 | ||
Features of steel grating
1.High strength and resistance to stress.
2.High bearing capacity it can carry the things of 3 to 60 tons.
3.Non-slip, anti-corrosion.
4.Durable and safe.
5.Easy to install and disassemble extend the lifespan.

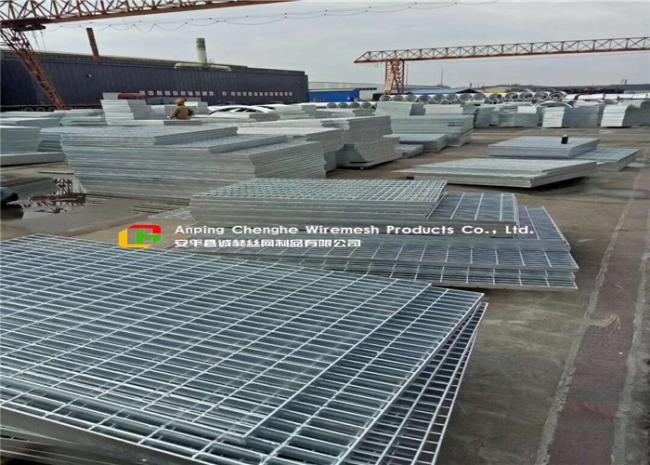

Products Picture;
