Custom Walkway Mesh Grating Hot Galvanized 5mm Twist Bar For City Garden
Custom Galvanized Steel Walkway Grating for Platform Airport City Garden
Description:
Galvanized Steel Walkway Grating is the most popular bar grating due to its strength, low cost, and ease of installation.It is used in a wide variety of applications including industrial plants, commercial buildings, walkways, platforms, safety barriers, drainage covers and ventilation grates. The openings are cost saving by maximizing the circulation of air, light, heat, water and sound, while promoting cleanliness. Whatever your specific needs are, Accurate Alloys, Inc. has the right bar grating for your application.
Standard welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel, the bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint, the cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.
Grating Standardizations:
| Countries | National Standards for Grating | Materials | Galvanizing Standards |
| China | YB/T 4001.1-2007 | GB 700-88 | GB/T13912-2002 |
| America | ANSI/NAAMM(MBG531-00) | ASTM(A36) | ASTM(A123) |
| Britain | BS4592-1995 | BS4360(43A ) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
Features:
Aesthetic outlook: Simple lines and silver appearance meeting the modern trend.
The best drainage: Leakage area of 83.3 percent, more than twice of cast iron products.
Hot-dip galvanized treatment: Good rust-proof property, maintenance-free replacement.
Anti-theft design: The cover and the frame is joint with hinge offering security, safety and open convenience.
Savings investments: Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.
High strength: The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.
Specifications: More specifications and sizes optional for meeting various environment, load, span, sizes and shapes.
Surface Treatment:
Steel grating untreated: Allowing quicker delivery to customers whom fabricate and galvanize the grating on their own.
| Common specifications: | |
| Materials Standards | ASTM A36, A1011, A569, Q235, S275JR, |
| SS304, mild steel and low carbon steel, | |
| Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, |
| 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm | |
| I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc | |
| US standards: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', | |
| 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' | |
| Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, |
| 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm | |
| US standards: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 | |
| Twisted cross Bar pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' and 4'' |
| Surface treatment | black, self color, hot-dip galvanized, painted, spray coating |
| Grating style | plain /smooth, serrated /teeth, I bar, serrated I bar |
| Packing | 1. LCL: packing with plastic film then on the pallets |
| 2. FCL: nude packing | |
| 3.other special packing according to customers' requirements | |
| Payment terms | T/T ( 30% deposit , 70% balance against BL copy ) ,or L/C, PayPal, Western Union, MoneyGram, Credit Card ,OA |
Primary Competitive Advantages:
- Price
- Product Features
- Product Performance
- Prompt Delivery
- Quality Approvals
- Reputation
- Service
- Small Orders Accepted
- Brand-name Parts
- Country of Origin
- Distributorships Offered
- Electronic Link
- Experienced Staff
- Form A
- Green Product
- Guarantee/Warranty
- International Approvals
- Military Specifications
- Packaging
1. We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)
2. OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’
projects, and make
products according to customers’ drawing.
3. Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.

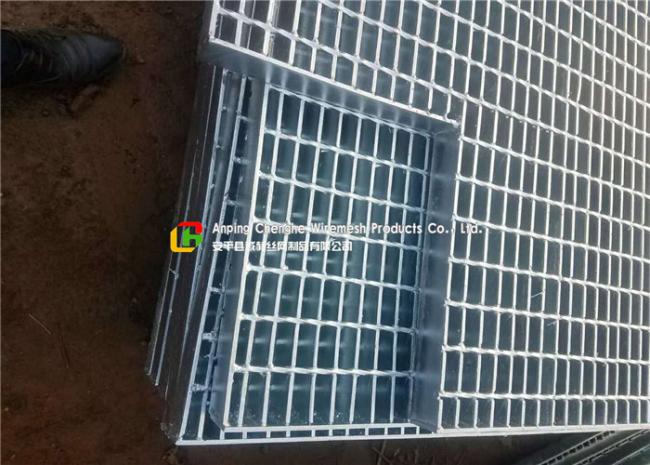

Material Picture:
