Full Welded Galvanized Steel Walkway Grating Anti - Corrosive For Building Material
Full Welded A36 S275 Q235 Galvanized Steel Walkway Grating for Building Material
Description:
Galvanized Steel Walkway Grating is hot dip galvanized processing, offers the following advantages: saving materials, saving investment, easy installation, durable in use, light structure, no accumulation of dirt, good performance of ventilation, lighting, heat dissipation, anti-corrosive, anti-acid an alkali corrosion.
The products are used in such industries as petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing, etc. And it exported to Australia, South-east Asia, Middle East, Japan, South-Korea, Trinidad, Singapore, New Zealand and so on.
Grating Standardizations:
| Countries | National Standards for Grating | Materials | Galvanizing Standards |
| China | YB/T 4001.1-2007 | GB 700-88 | GB/T13912-2002 |
| America | ANSI/NAAMM(MBG531-00) | ASTM(A36) | ASTM(A123) |
| Britain | BS4592-1995 | BS4360(43A ) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
steel grating specification- Grating Metal galvanized grating
panel size available(black grating): 1000x5800mm or 1000x6000mm ,7315*1000mm
| Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Shipping Information:
- FOB Port:Tianjin
- Lead Time:7 - 15 days
- Dimensions per Unit:5.8 × 1 × 0.03 Meters
- Weight per Unit:200 Kilograms
- Units per Export Carton:1000
- Export Carton Dimensions L/W/H:11.8 × 2.35 × 2.35 Meters
- Export Carton Weight:27 Tons (US)
Main Export Markets:
- Asia
- Australasia
- Central/South America
- Eastern Europe
- Mid East/Africa
- North America
- Western Europe
1. We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)
2. OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’
projects, and make
products according to customers’ drawing.
3.Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.

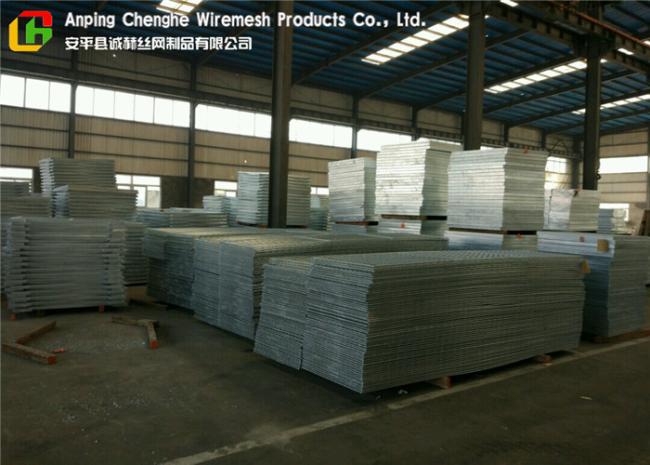

Picture;
