Sliding Resistance Steel Platform Grating , Serrated Steel Grid Mesh Flooring
Sliding Resistance Steel Platform Grating , Serrated Steel Grid Mesh Flooring
Description:
1) Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications.
2) steel bar : 25x5, 30x5, 45x5mm and so on
3) wire diameter : 6mm , 8mm and so on we can do as your demand
4) hole size : 25x50mm , 50x100mm , 100x 30mm and so on we can do as your demand

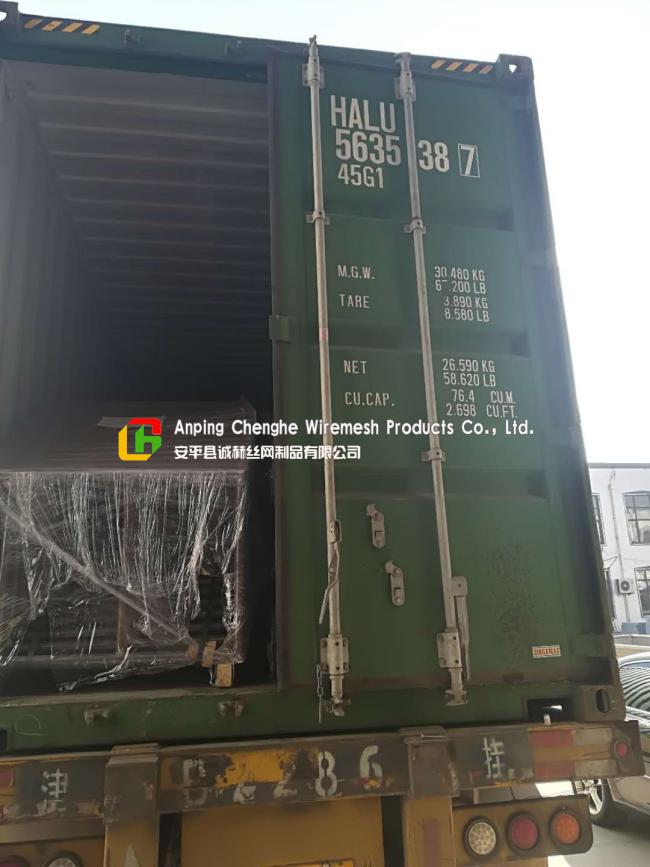

5) packing : iron pallet
6) surface treatment : PVC painting , galvanized , hot dipped galvanized
7) Style:plain,serrated,I-shape.
| Pitch of Bearing bar | Cross-bar Pitch | Specification of steel graing(width×thickness) | ||||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 | |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 | |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | ||
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | ||||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 | |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 | |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 | |
Intensity, light structure: strong grid bonding structure makes it with high load, the structure
characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface
treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat
dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
Our advantages
1. Our company produce various specifications,models as per standards
2. Using high -quality material and advanced production technology and equipment for processing
3. Applicable to a humid climate and the harsh corrosive enviroment
4. Products has been exported to Singapore,Malaysia,Thailand,Vietnam,indonesia,Europe,North American,the Middle East,Africa,Asia,European,other countries and regions
- We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)
- OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’
projects, and make
products according to customers’ drawing.
- Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.
-
Question: Can you produce the steel grating according to the sizes of the customers requirement?
Answer: Most supplying steel gratings are produced according to the drawing. There are design and technical departments in our company, the specialist in these departments have many years of development experience.
-
Question: We are going to buy press-locked steel grating, what is the maximum size of bearing bar?
Answer: The maximum size of press locked steel grating is 2500 × 2200 mm, 2500 mm is the maximum length of bearing bar, 2200 mm is the maximum length of crossing bar, the size of the corresponding standard mesh is 34 mm × 33 mm.
-
Question: Can I replace or return the received goods?
Answer: According to your letter or claim, we will be processed within two working days, because our company is committed to providing high quality service to our customers.
-
Question: What are the benefits of choosing your company as regular customers?
Answer: If choose our company, each customer can enjoy a certain discount. And each customer will be assigned a manager who is responsible for working with the business.
