Construction Metal Stair Steps , Exterior Metal Stair Treads 40mm Width
Description:
Stair treads in each of these metal grating types come in both plain and serrated styles. Our serrated stair treads, also known as safety treads, are specifically designed to offer good protection against slips in areas prone to oil or other hazardous elements. Therefore, metal safety treads are perfect for industrial facilities or outdoor sites where slippery conditions may exist from time to time.
We manufacture different styles of stair ladders that used in family,industry and construction.
Material: mill steel black and hot dip Galvanizing / and stainless grating
Usage: ladder, flooring walkway, platform ,steel structures, stair tread, well cover, trench cover, sump cover,compound gratings, storage shelves,fences and handrail so on for construction project, oil project, seaport, power plant, water plant, defense project, chemical factory and so on.
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 |
G605/60/50 |
1)Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications.
2) steel bar : 25x5, 30x5, 45x5mm and so on
3) wire diameter : 6mm , 8mm and so on we can do as your demand
4) hole size : 25x50mm , 50x100mm , 100x 30mm and so on we can do as your demand
5) packing : iron pallet
6) surface treatment : PVC painting , galvanized , hot dipped galvanized
7) Style:plain,serrated,I-shape.
Common specifications:
| Steel Grating Standard | Steel Standard | Galvanized Standard |
| China standard | YB/T 4001.1-2007 | GB/T 13912-2002 |
| USA standard | ANSI/NAAMM(MBG531) | ASTM(A123) |
| U.K.standard | BS4592 | BS729 |
| Australia standard | AS1657 | AS1650 |
Features:
High strength, light structure: solid grid pressure welding structure has advantages of high load, light structure, easy installation, etc.
Fine appearance, durable in use: hot zinc dipping surface treatment makes it own fairly good corrosion resistance, bright and beautiful surface.
Good ventilation, lighting, thermal, anti-explosion, and anti-skid performance.
Prevent dirt deposition.
-We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)
-OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’
projects, and make
products according to customers’ drawing.
-Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.

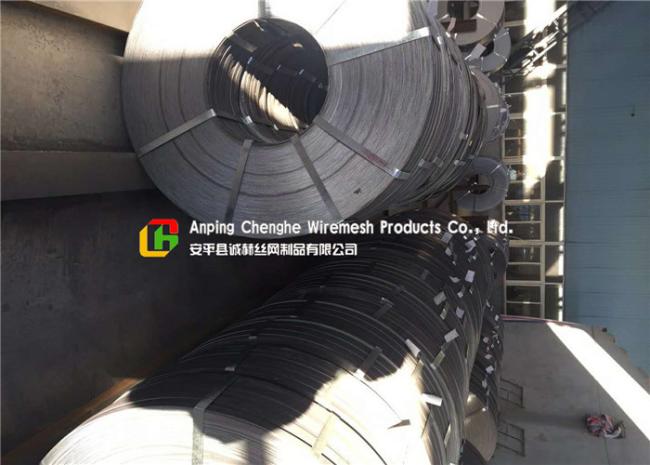

Material Picture
