LTA Floor Trough Drain Grates , Galvanised Drain Cover Security Design
LTA PUB HDB DIC Trench Grate or Drain Cover for the Building and Roads
Description:
Drain cover is usually used in the side of the road and swage treatment plant, it is for water drainage.Trench Drain Cover Gratings are steel lattice panels formed with simple lines, secured with hinged lid and connection. Ideal replacement drainage covers for conventional cast iron materials. Suitable for light type and large span heavy loading environment. Widely used in sewage treatment system in urban roads, squares, gardens, docks, airports, parking lots, roads, railways, industrial engineering and other types of industrial buildings.
Trench cover is another usage of steel grating, it's usually used in drainage system, like sewage treatment plant, port drainage channels, and plaza drainage system. As our products are mostly hot dip galvanzied, it can resist corrision and rust. Moreover, we can produce different size of steel grating for customers according to different load capacity requirement, shape request, etc.
And ,we can provide the LTA PUB HDB DIC Trench Grate or Drain Cover for the Buiding and Roads.
Feature:
Appearance: simple lines. Silver exterior, modern trends.
Best drainage: leakage area of 83.3%, more than double the cast iron.
Hot-dip galvanizing: rust-proof and strong, maintenance and replacement.
Security design: box with hinged lid and connection, security, safe, easy to open.
Saving investment: large span. When overloaded, the lowest ratio of iron and saves replacement costs stolen, then crushed.
High strength: strength and toughness is much higher than cast iron, can be used for terminals, airports and other large span and heavy load environment.
Specifications and more: meet different environment and loading requirement. Span, the desired size and shape.
Materials & Finishes
We design and manufacture many kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating, I Bar Type Steel Grating and other gratings. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We also supply standard steel grating and in customized shapes per client's requirements.
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;
2) Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement but 30, 40, 60mm are recommended.
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on.>
3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
4) Material:
Mild Steel (Low Carbon Steel ASTM A36 or Q235) , Stainless Steel 304 or 316
5) Surface Treatment:
Untreated, Painting or Hot dip Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.
| Product name | Stainless steel grating |
| Type | Welded steel grating, pressure-locked, socket-welding |
| Bearing Bar Pitch(mm) | 12.5,15,20,25,30,35,40,50mm |
| Cross Bar Pith(mm) | 20,38,50,80,100mm |
| Thickness(mm) | 3mm , 4mm, 5mm, 6mm, 8mm,according to customers' requirement |
| Material | Stainless steel 201/304/316 |
| Surface Treatment | Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement. |
| Fields Of Application | Platforms ,sidewalks,filter grates,ventilation grates,driling stages, |
| ladder steps,ditch grates,fences,framedgrates,trash rack grates , | |
| paint backing chambers and so on | |
| MOQ | 1pc |
| Delivery Time | 5-30days |
| Supply Capability | 300 pcs |
| Free Sample | Available |
Common specifications:
| Steel Grating Standard | Steel Standard | Galvanized Standard |
| China standard | YB/T 4001.1-2007 | GB/T 13912-2002 |
| USA standard | ANSI/NAAMM(MBG531) | ASTM(A123) |
| U.K.standard | BS4592 | BS729 |
| Australia standard | AS1657 | AS1650 |
Application
1. Widely used in shipbuilding, harbor, oceanographic engineering, building, paper mills, cement plant, medicine, spinning and weaving.
2. Is applied in food stuff factory, transportation, municipal administration, parking lot , etc.
3. Also used by various plants such as electric power, petroleum,chemical industry.
Packaing
Normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. there are four or six pieces of M10 long bolt pen trading the gratings and screwing together .it is suitable for loading and unloading by fork-lift and crane.
1. Strap Packaging: generally applicable to relatively neat grid of steel plate.
2. Pallet Packaging: Usually for export packing.
3. Screw Rod Fixation: using four screws bar through the steel grating aperture, with screw locking packaging methods.
Process flow
(1) materian
(2) pressure welding
(3) cutting
(4) welding of ends bar
(5) surface treatment
(6) final shipment
We provide regular size perhaps you think not suitable, it doesn't matter! Please put your actual measurement size tell us, we can produce according to your needs and requirements for the size . If you want to know the price of our products, please do not hesitated to call us or email to us.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on alibaba, please have a detailed looking and choose the interested products in our site.
Q: If I want cheaper quality, can you produce?
A: Yes, just send us your quality details, such as the material, what cheaper parts instead, etc, we will do that as your request and calculate the price.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the products specification,quantity and other requirements. We will make the most competitive quotation to you as soon as possible.

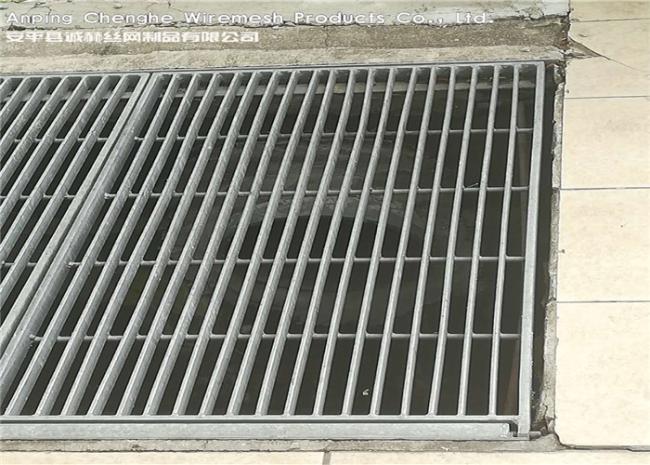

Product Picture
