Customized Steel Pipe Fence / Railing , Roads Galvanized Steel Fence
Customized Steel Pipe Fence or Railing White Green Color for Roads
Description:
Wire mesh fence Material Low carbon steel wire, stainless steel wire ,Carbon Steel Pipe,Mild Steel Flat,etc
Welded Wire Mesh Variety:Hot dipped galvanized after welding Welding with hot dipped galvanized iron wire Electro galvanized after welding Welding with electro galvanized iron wire PVC coated welded wire mesh. Welded wire fences are used as border fences or perimeter field fences. Typical applications include industrial units, civic amenities, schools and other such applications.
1. Wire mesh fence specifications (panel & post)
Specification of Fence Panel
| Panel height | Panle Length | Wire Diameter | Mesh Size | Folds No. |
| 1.03m |
2.0m 2.5m |
Gal+PVC Painted 3.85mm/4.0mm 4.85mm/5.0mm
Gal+PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm
|
50*200mm 55*200mm 50*150mm 55*100mm
|
2 |
| 1.23m | 2 | |||
| 1.5m | 3 | |||
| 1.53m | 3 | |||
| 1.7m | 3 | |||
| 1.73m | 3 | |||
| 1.8m | 4 | |||
| 1.93m | 4 | |||
| 2.0m | 4 | |||
| 2.03m | 4 | |||
| 2.4m | 4 |
Specification of Square Post
| Size | 40*60mm,50*50mm,60*60mm,80*80mm |
| Thickness | 1.2mm,1.5mm,2.0mm |
| Height | 1.3m,1.5m,1.6m,1.8m,2.0m,2.5m,3.0m |
| Surface | Elec. Gal.,Hot-dip Gal.,Powder spray,Deep Powder coated |
| Clip | Plastic, Metal |
Specification of Peach post
| Size | 50*70mm,70*100mm |
| Thickness | 1.2mm |
| Height | 1.5m,1.8m,2.0m,2.5m |
| Surface | Pre hot dipped galvanized+Powder Spray |
Specification of Round Post
| Size | 38mm,40mm,42mm,60mm |
| Thickness | 1.2mm,1.5mm,2.0mm |
| Height | 1.5m,1.6m,1.8m,2.0m,2.5m |
| Surface | Elec.Gal., Hot-dip Gal.,Powder spray,Deep Powder coated |
Advantages:
1 grid structure concise, beautiful and practical.
2. ease of transportation, installation undulating terrain without restrictions.
3.especially for the mountain slope more highly adaptive bending zone.
4 price was relatively low,suitable for large-scale use.
Usage : Widely used in highway, railway, airport, stadium, Seine enclosure fence, district, development zone cars, power plants, garden prison, breeding, protection for orchard in the areas of safety.
Surface Treatment : PVC powder spraying coated or PVC powder dipping coated , Galvanized(Hot-dipped Galvanized,Electro Galvanized)
Design Advantage:
Extraordinary and fashionable design, convenient installation. The fence panels are jointed with the post without any clamps, and it is easy and convenient. It could insert into the sew of concrete base of 40mm width. Usually there is the plastic caps on the top of the post. The upper examine and repair is very easy, and the posts are easy to replace.
Varieties available:Electric galvanized, hot-dipped galvanized ,PVC coated
| Fence Height | Panel Width | Wire Diameter | Mesh size(mm) | Folds No. | Post style | Post size(mm) | Post Length(cm) |
| 103cm | 200cm 225cm 250cm |
3.5mm 4.0mm 4.5mm 5.0mm 6.0mm 8.0mm |
50x50 50x100 50x150 50x200 60x120 |
2 | Square post 1 | 40x60x1.5 | 150 |
| 123cm | 2 | 40x60x1.8 | 170 | ||||
| 150cm | 2/3 | 40x60x2 | 197 | ||||
| 153cm | 2/3 | Square post 2 | 60x60x1.5 | 200 | |||
| 170cm | 3 | 60x60x1.8 | 217 | ||||
| 173cm | 3 | 60x60x2 | 220 | ||||
| 180cm | 3 | 60x60x2.5 | 227 | ||||
| 193cm | 3 | Peach post | 50x70 | 240 | |||
| 200cm | 3/4 | 70x100 | 250 | ||||
| 203cm | 3/4 | Holland post | 48x1.5 | 250 | |||
| 240cm | 4 | 290 |
Wire mesh fence production process
Fence Panel Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds/Curves Bending → Electric Galvanizing/Hot-dipped Galvanizing → Parkerizing → PVC Coating /Spraying → Packing → Loading
Fence Post Process: Raw Material → Cutting → Hole Drilling → Electro Galvanizing/Hot-dipped Galvanizing → Sandblasting → PVC Coating/Spraying → Packing → Loading
Wire mesh fence packing and loading
Fence panel: Plastic film for every piece in bulk or Wooden/Metal Pallet
Fence post: Plastic film + Wooden/Metal Pallet
Accessories: In woven bags or Cardboard boxes
1,Q: Can you offer free sample?
A:Yes, but usually the customer need to pay the freight
2,Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in fence field for 10 years.
3,Q: What information should I provide, if I want a lowest quotation?
A: The specification of the fence.
4,Q:Can I customize the products?
A:yes, as long as provide specifications, drawings, can only do what you want products
5,Q:what is the quality warranty?
A: Five years’ quality warranty
6,Q: how about the delivery time?
A:Usually within 15- 20days,customized order may need longer time.

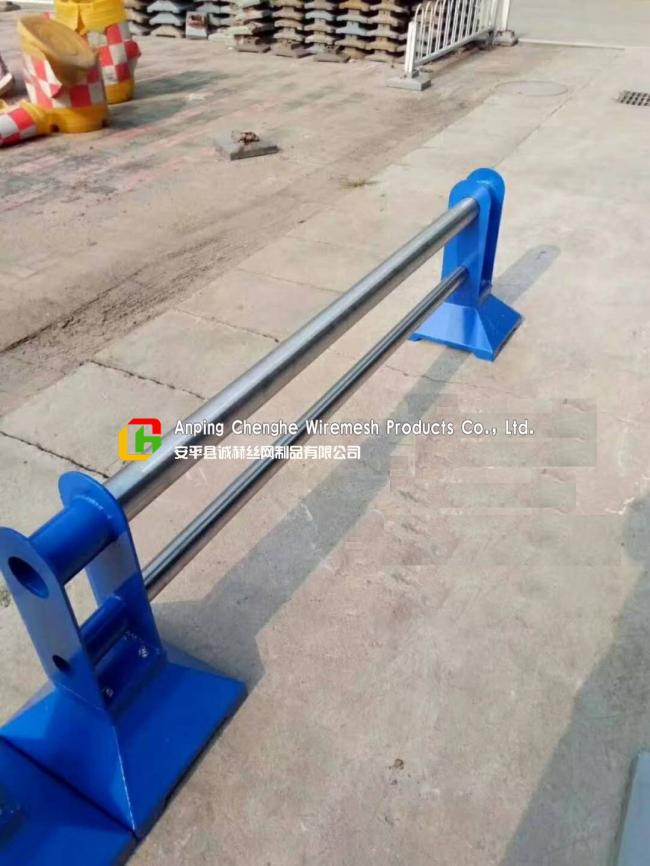

Product Picture
