Custom Vehicuar Galvanised Steel Grating 90/86mm Height 22mm thickness

Description:

Vehicuar Gratings are designed to service applications subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers and airports. Since these conditions can range from light-duty forklifts to heavy-duty truck or aircraft traffic, heavy duty gratings are manufactured in a wide range of bar sizes and spacings.

Vehicular loads are designed in conformance with current AASHTO specifications for classifications H-15 through H-25. Automobile and forklift loads are similarly evaluated with loads calculated and distributed in accordance with the “Maximum Traffic Conditions”. If your application is not adequately addressed by these load conditions, please contact our engineering department and we will gladly assist in the selection of a heavy duty grating to satisfy your specific needs.

Technical Parameters:

Materials & Finishes

Heavy duty gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.

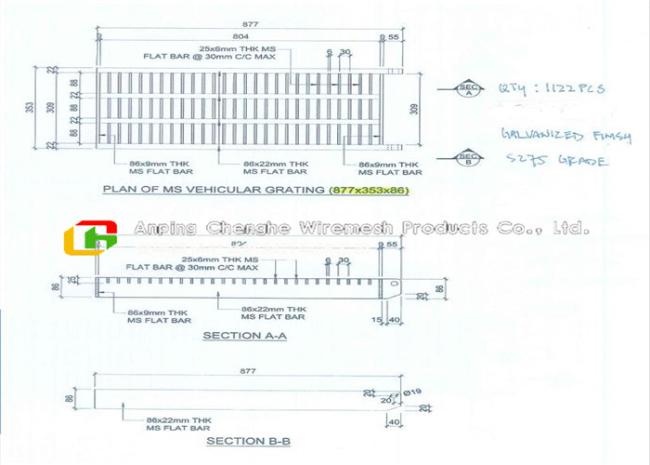

Product Picture
