2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
Price:
2300/set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Howfond
Product Description

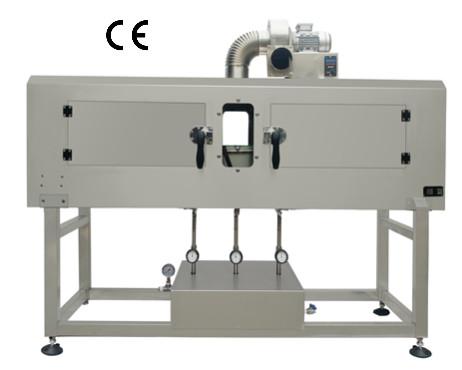

1. 2m Sleeves Steam Shrink tunnel with Adjustable Conveyor Brief Introduction
This steam shrink sleeve tunnel equipped with adjustable conveyor belt, suitable for various sizes of bottles, jars and containers. Users can adjust speed and temperature according to different products, achieving wrinkle-free and tight shrink labels. Widely used in daily chemical, food and beverage industries.
2.Advantage of Howfond’s steam shrink tunnel with temperature controller.
(1) Superb shrink finish with filled or cold bottles
(2) Windows are installed inside of tunnel’s body with water leaking holes, no water getting out.
(3) Steam tubes are made of SS316 with rubber wrapping
(4) Low running cost, 50~60kg steam/0.3~0.4Mpa.
(3) Steam tubes are made of SS316 with rubber wrapping
(4) Low running cost, 50~60kg steam/0.3~0.4Mpa.
(5) 6 Steam spray tubes are adjustable for complex shapes of bottles.
(6) Exhausting blower is on the top of tunnel, its speed is adjustable.
(7) Simple manual adjustment, and completed control.
(8) Precise steam control by 3 digital handles for 3 areas, and saving steam.
(8) Precise steam control by 3 digital handles for 3 areas, and saving steam.
(9) Cancel outer water collection tray, sealed. Can be used for high speed applications.
(10) Full body of tunnel is made of SS304 stainless steel
(11) Strong and easy 0perational handles on windows.
(12) steam tubes are hided under tunnel, simple and generous
(12) steam tubes are hided under tunnel, simple and generous
3. steam shrink tunnel for jar containers Parameters
| Item Models | HF-1200M | HF-1500M | HF-2000M | HF-2300M |
| Length of tunnel | 1.2meters | 1.5meters | 2.0meters | 2.3meters |
| Blower powder | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW |
| Powder supply of blower | 220V 3P 60Hz or 220V 1P 50Hz | |||
| Entrance /exit height | Max 350mm | |||
| Entrance /exit width | 130~210mm (fixed size once confirmed) | |||
| Running pressure | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa |
| Weight | 180kg | 200Kg | 220kg | 230kg |
| Steam consumption | 18kg/h | 21kg/h | 24kg/h | 24kg/h |
| Conveyor speed | 0~35m/minute | 0~35m/minute | 0~35m/minute | 0~35m/minute |
| Outline size (m) | L1.2*W0.4*H1.5 | L1.5*W0.4*H1.5 | L2.0*W0.4*H1.5 | L2.3*W0.4*H1.5 |
kunshan Howfond Machinery Co.,Ltd.
Add:No.18 DongTing North Rd(215400),ED-Zone,TaiCang City,Jiangsu Province.
Skype: alicehongjin
Tel: +86-0512-89571370
Mobile/WeChat :+86-15692118327
