TCM Top-drive Cone Mill

Description:

TCM Top-drive Cone Mill is movable top drive conical mill machine without lifting function. The four-caster easy transportation feature avails its application in many areas of the plant.

TCM Top-drive Cone Mill is mainly used for milling of raw materials, granulating of wet materials, granulating of dry materials in pharmaceutical, food, fine chemical processing industries.

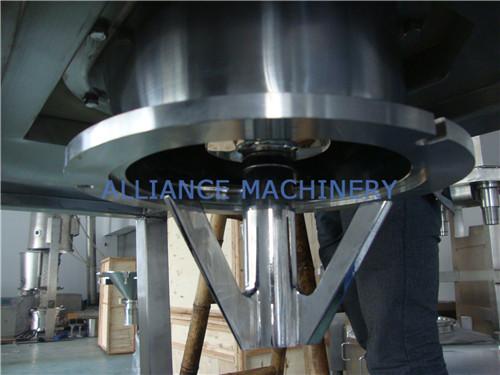

The material to be processed enters into the conical working chamber via the feeding hopper. The rotating knife plays a whirling action to the material, and throws the grains to the sieve mesh surface. The material is ground by the shearing action produced by the

rotating blade and the sieve mesh, and discharged through the sieve apertures. The grain

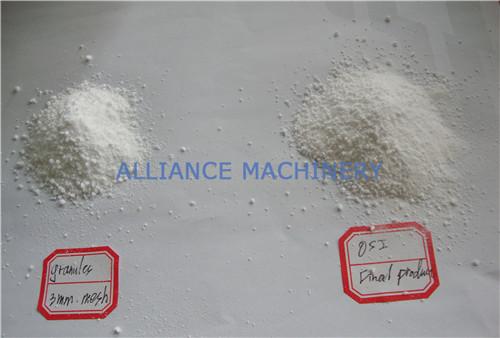

size can be adjusted by the sieve mesh number, the gap between rotating knife and sieve

mesh, and the speed of rotating knife. The means of adjustment is flexible, and the use is

convenient

Features:

Allicable for both dry milling and wet milling
Patented shaft sealing.
Easy replacement of different size mesh sieve.
Easy adjustment of mill blade clearance between sieves.
Low heat emission.
High efficiency and stable running, low noise.
No dead corner, easy washing, GMP compliant design.

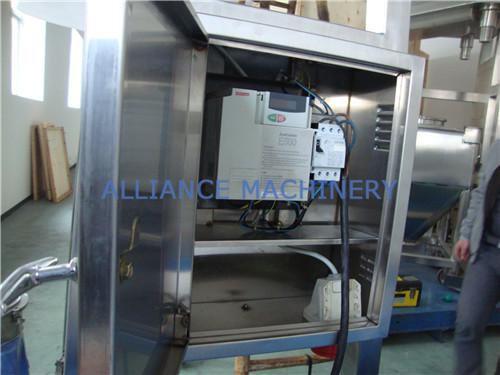

Frequency converter for speed adjust
Product size adjustable

Options:

Ex-proof design
Additional size sieves

Specifications:

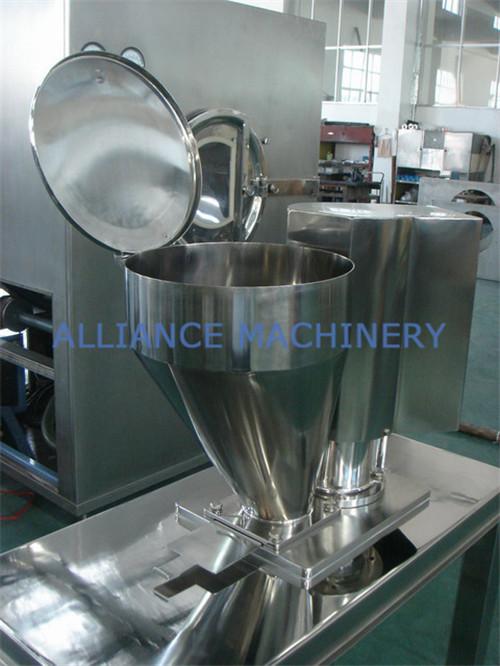

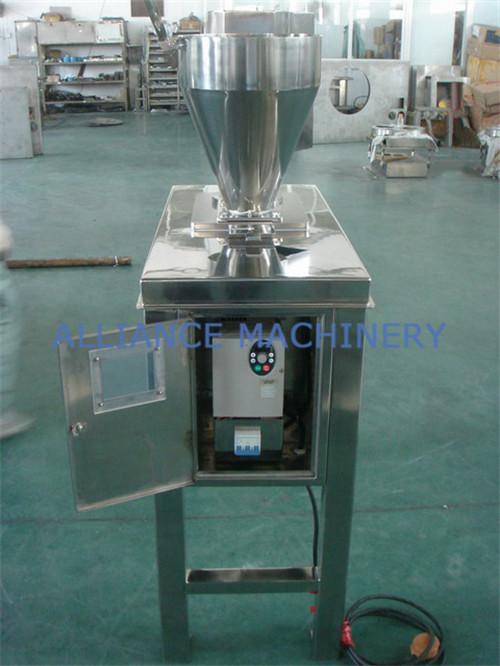

Product Photos:

Video Link:

https://vimeo.com/274401575
