NJP 5500 12 Stations Automatic Capsule Filling Machine Powder Granule Pellet

NJP-5500

Description:

NJP5500 Capsule Filling Machine has a lot of improvement, select its essence and fully innovative, its product is popular with domestic and foreign general customers.

Features:

Three capsule positions rows of 43-holes, the 12-workstations design, at home and abroad to become only the largest single production of high-tech equipment. (1 hour production Up to 330,000 Capsules/hour).
NJP5500 automatic capsule-filling machine for all the digital transmission of the cam, improved from the original cam, the spring stretch, to the special high-quality materials, production, transmission groove round, out of the spring Traction easy fatigue, short life of the shortcomings, and the wear-resistant, stable operation.
NJP5500 automatic capsule-filling machines, taking into account the long run facilities, easy access to drugs dust die turntable set to be demolished to clean, innovative design, to seal ring for filters installed. Ensure full operation of the equipment and seal the cumbersome equipment maintenance shortcomings.
Uses the automatic oiling system, to the transmission part, the slotted concave wheel, and the chain wheel carry on after 24 hours (production real-time)automatic oiling. In addition to the body and stainless steel storage disk, and clean, easy clean-up
It adopts three-dimensional control elements; and takes the undersurface plane of the dosing disc as a base, so as to eliminate the natural transmutation of the dosing disc and copper saucer. It is uniform in the interval and guarantees the accurate filling weight, decreasing the phenomena of powder leak and easy to clean.
Add the extra function of the capsule control switch. (Control the capsule outside of the machine: it's more safely and quickly.)
Add the JOG control system, it's easier to operate and clean the machine. According to CE, ISO, and GMP international standards.
An additional function of blowing and suction of module. ensure clean dust in the mould hole.

Options:

Pellet/granules filling device

Auto empty capsule vacuum loader

Auto power transporter

Specifications:

Product Photo:

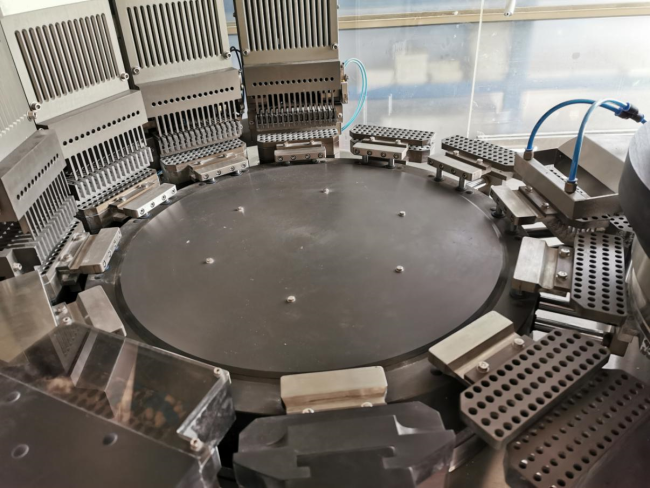

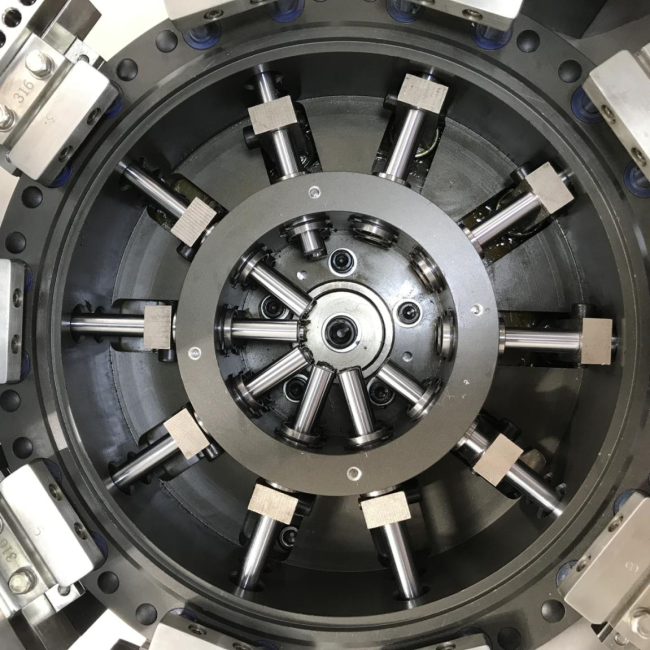

New turret design

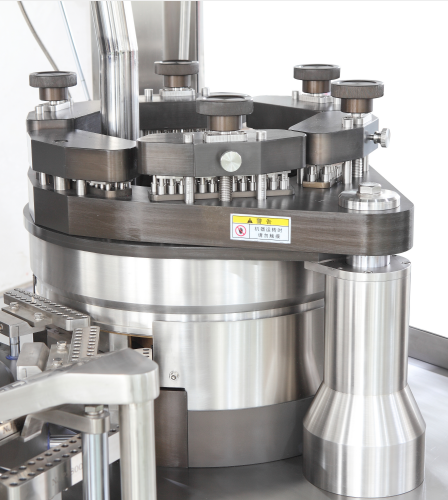

Powder filling system

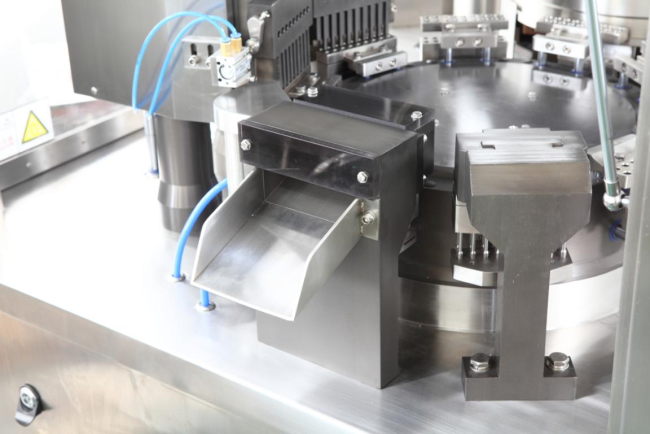

New Outlet device of finished capsule
