Semi - Automatic Horizontal Liquid Capsule Manufacturing Machine CGN208-D1 Model
CGN208-D1 Semi-Auto- Capsule Filling Machine
Description:
CGN208-D1 Horizontal Capsule Filling Machine is horizontal type capsule locking and ejecting design.
It is more easy operation, intuitive and higher efficiency in capsule dropping, orientation and vacuum separation in comparison with the old type. The new type of capsule orientation assembly adopts columns pin positioning, which shortens the mould replacement time from original 30 minutes to 5-8 minutes.
CGN208-D1 Horizontal Capsule Filling Machine is the ideal equipment for capsule filling in small and medium-sized pharmaceutical companies, pharmaceutical research and development laboratories and hospital preparation rooms.
Features:
- PLC touch screen control
- Inverter control speed regulating
- Horizontal capsule lock and eject
- Parts replacement in 5-8 minutes
Specifications:
| Model | CGN208-D1 |
| Capacity [pcs/hour] | 25,000-30,000 |
| Capsule size | 000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#,4# |
| Power supply | 380V 50Hz 3P |
| Power [kw] | 4 |
| Compressed air | 0.03m3/min 0.7MPa |
| Vacuum pump [m3/h] | 40 |
| Mould change time[min] | 5-8 |
| Dimensions [mm] | 1140*700*1630 |
| Weight [kg] | 380 |

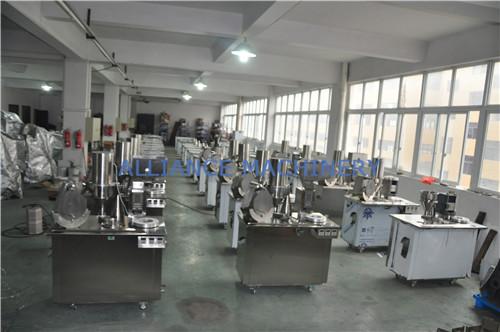

Photo:
Video Link :
https://vimeo.com/274188683
