BCM Bottom Driven Cone Mill Pharmaceutical Milling Equipments With Patented Shaft Sealing bottom drive conical mill
BCM Bottom-driven Cone Mill Pharmaceutical Milling Equipments Three-blade Mesh Screen
BCM Bottom-driven Cone Mill
Description:
BCM Bottom-drive Cone Mill is movable bottom drive conical mill machine without lifting function. The four-caster easy transportation feature avails its application in many areas of the plant.
BCM Bottom-drive Cone Mill is mainly used for milling of raw materials, granulating of wet materials, granulating of dry materials in pharmaceutical, food, fine chemical processing industries.
Features:
Allicable for both dry milling and wet milling
Patented shaft sealing.

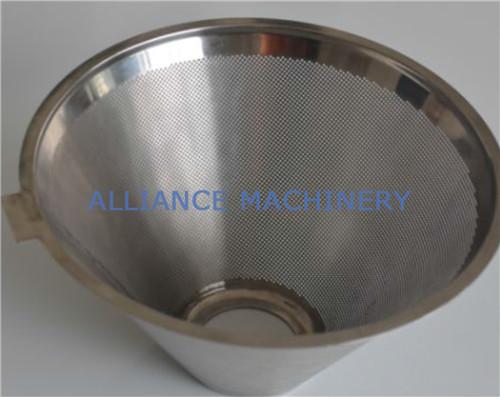

Easy replacement of different size mesh sieve.
Easy adjustment of mill blade clearance between sieves.
Low heat emission.
High efficiency and stable running, low noise.
No dead corner, easy washing, GMP compliant design.
Options:
Ex-proof design
Additional size sieves
CIP/SIP requirements
Specifications:
| Model | BCM-125 | BCM-150 | BCM-200 | BCM-250 | BCM-250+ | |
| Capacity [kg/h] | ≤250 | 200-500 | 500-1500 | 1500-2500 | 1500-3000 | |
|
Sieve mesh [mm] |
Round Hole | Ø0.5-5.0 | Ø0.5-5.0 | Ø0.5-5.0 | Ø0.5-5.0 | Ø0.5-5.0 |
| Square hole | 3x3-10-10 | 3x3-10-10 | 3x3-12-12 | 3x3-14-14 | 3x3-14-14 | |
| Max Speed [rpm] | 2000 | 1450 | 960 | 960 | 960 | |
| Power [kW] | 1.5 | 3 | 3 | 4 | 5.5 | |
| Dimensions [mm] | 1150x450x1500 | 1250x650x1600 | 1600x700x1600 | 1600x700x1600 | 1600x700x1600 | |
| Power Supply | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | |
| Weight [kg] | 150 | 220 | 270 | 300 | 300 | |

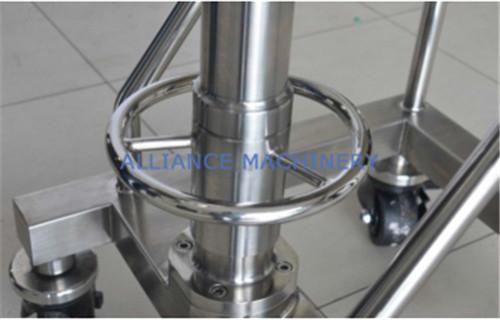

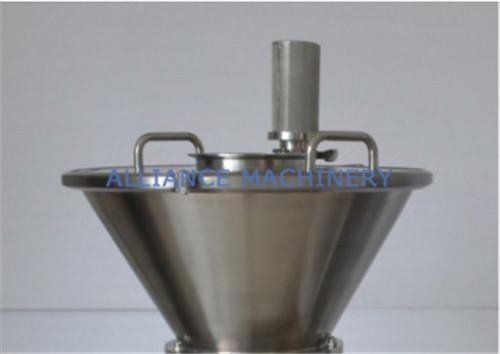

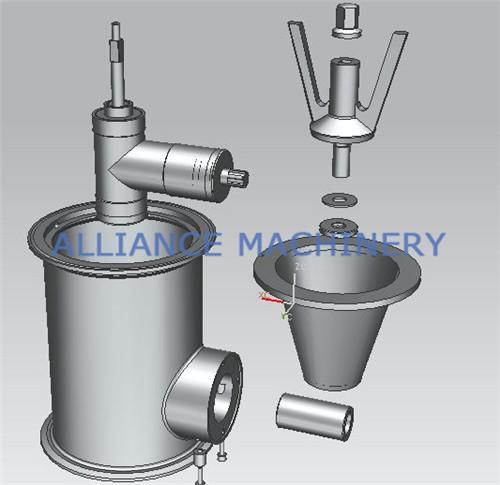

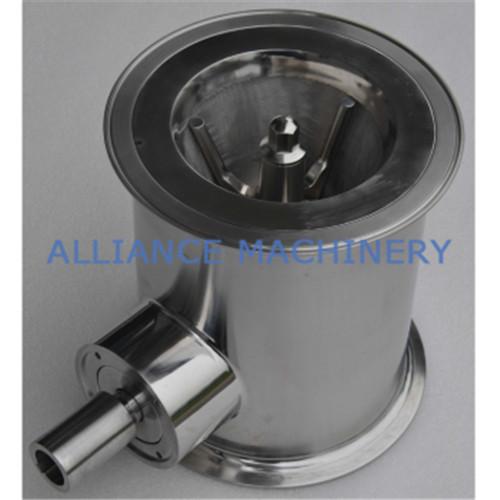

Product Photos:
