YK Oscillator Pharmaceutical Oscillating Milling Granulator , Food Granulator 1.1-5.5 KW Mesh Sieve
YK Oscillating Swaying Granulating Pharmaceutical Milling Equipments Mesh Sieve Granulator
YK Oscillator
Description:
YK Oscillator is a popular granulating machine used for obtaining required granule sizes from wet materials, or for crushing coagulated material to granules of required size in pharmaceutical industry.
YK Oscillator is also widely used in food and chemical industries for granulating candy and sugar mixture as well as barley milk products, porcelain and plastic mixtures.
Features:
Easy cleaning and maintenance, GMP compliant design.
The rotating speed of the rotor is adjusted during operation.
Sieve can be easily removed and remounted, sieve tension is also adjustable.
The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components.
Specifications:
| Model | YK-100 | YK-160 | YK-250 |
| Max Capacity [kg/h] | 30-200 | 100-300 | 150-400 |
| Diameter [mm] | ø120 | ø160 | ø250 |
| Max Speed [rpm] | 55 | 55 | 40 |
| Power [kW] | 1.1 | 2.2 | 5.5 |
| Dimensions [mm] | 700x400x1050 | 1000x800x1300 | 1300x920x1500 |
| Machine Weight [kg] | 280 | 380 | 550 |

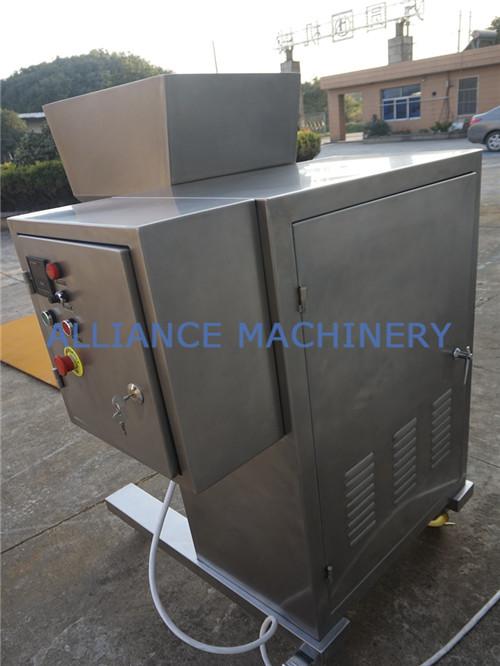

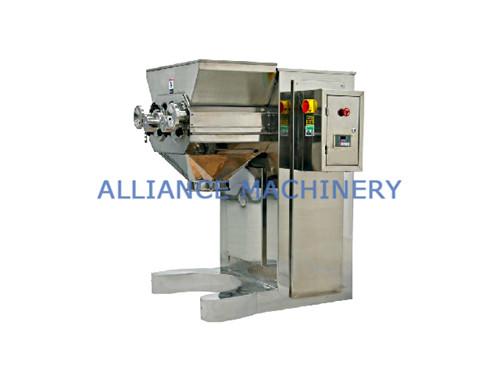

Product Photos:
