CHSM Compact High Shear Mixer

Description:
CHSM Compact High Shear Mixer is a compact design machine in solid dosage mass production for mixing granules/powders and wet granulation.

Common High Shear Mixer process time is about 12 mins.

Wet granulation finished products are of good flowability, easy to dose/handle, low hygroscopic and compact structure. The granules with good solubility and high bulk density, granuler size 20~80 mesh, equivalent to 0.18~0.85 mm.

It is also widely used in food, chemical industries for similar purposes.


Features:
End-point process control
Traceability and repeatability
GMP compliant for pharmaceutical production


Options:
Auto raw materials feeding
Auto solution feeding
Jacketed bowl
Explosion-proof
WIP setup
21 CFR part 11 compliant control system

Specifications:

Model	Machine Dimensions [mm]	Bowl Volume [L]	Load Coefficient	Capacity [kg]	Impeller Speed [rpm]	Chopper Speed [rpm]
CHSM75	2300x850x1800	75	0.4~0.8	15~30	5.5	3
CHSM100	2550x970x2220	100	0.4~0.8	20~40	11	4
CHSM150	2750x970x2400	150	0.4~0.8	30~60	15	5.5
CHSM200	2750x970x2460	200	0.4~0.8	40~80	15	5.5
CHSM300	2950x970x2650	300	0.4~0.8	60~120	18.5	7.5
CHSM400	3000x1220x2700	400	0.4~0.8	80~160	22	7.5
CHSM500	3000x1220x2950	500	0.4~0.8	100~200	30	11
CHSM600	3000x1220x3100	600	0.4~0.8	120~240	37	11
CHSM800	3200x1300x3250	800	0.4~0.8	160~320	45	15



Product Picture:

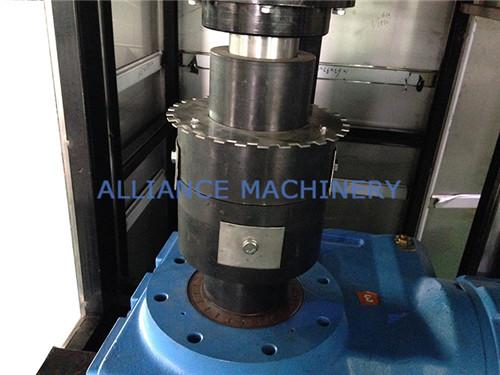

PID impeller rotation speed control
