LHSM Laboratory High Shear Mixer Pharmaceutical Granulation Equipments R&D Pilot 5-50L Lab 20kg Changeable Vessel

LHSM Laboratory High Shear Mixer Pharmaceutical Granulation Equipments R&D Pilot 5-50L Lab 20kg Changeable Vessel​

LHSM Lab High Shear Mixer

Description:

LHSM Lab High Shear Mixer is mainly used for mixing granules/powders and wet granulation in the pharmaceutical R&D and pilot scale production.

Common High Shear Mixer process time is about 12 mins.

Wet granulation finished products are of good flowability, easy to dose/handle, low hygroscopic and compact structure. The granules with good solubility and high bulk density, granuler size 20~80 mesh, equivalent to 0.18~0.85 mm.

It is also widely used in food, chemical industries for similar purposes.

Features:

Plug & play
Mobility with four casters
Changeable bowl for smaller batch run
End-point process control
Repeatability and traceability
GMP compliant for pharmaceutical production

Options:

On-line print out
Jacketed bowl
Explosion-proof
21 CFR part 11 compliant control system

Specifications:



Model	Machine Dimensions [mm]	Bowl Volume [L]	Load Coefficient	Capacity [kg]	Impeller Speed [rpm]	Cutter Speed [rpm]	Total Power [kW]	Machine Weight [T]
LHSM5	1090x550x1100	5	0.4~0.8	1~2	90~900	1000~2800	1.85	0.12
LHSM10	1165x550x1355	10	0.4~0.8	2~4	90~900	1000~2800	1.85	0.25
LHSM15	1720x650x1400	15	0.4~0.8	3~6	50~290	1000~2000	3.3	0.3
LHSM25	1720x650x1455	25	0.4~0.8	5~10	50~200	1000~2000	3.3	0.3
LHSM50	2080x800x1705	50	0.4~0.8	10~20	50~200	1000~2000	6.2	0.4

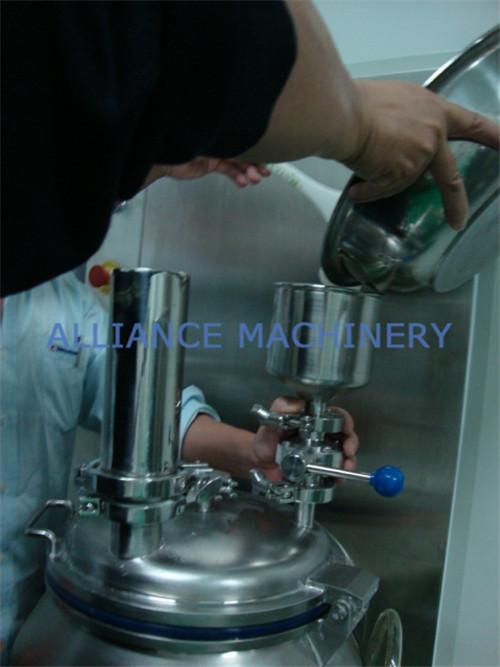

Material Test Photos:
