VF Vacuum Feeder
Description:
VF Vacuum Feeder consists of vacuum pump (no oil, no water), stainless steel suction port, conveying pipe, PE filter or 316 stainless steel filter, compressed air blow back cleaning system, pneumatic discharge valve, hopper and material level control device etc. It has intermittent and continuous working method. Intermittent discharge method is lower cost and easy material level control. The continuous dishcarge method is usually used in long distance and large capacity conveying.
Features:
Quick installation.
The product contact parts materials are made of high quality austenitic stainless steel 316L.
It is provided with material level sensor for good material quantity control.
It adopts unique high pressure vortex air pump, which is featured by small volume, low noise and long service life.
The automatic pulse blowback cleaning filter ensures continuous running of the equipment.
Automatic control.
Specifications:
| Model | VF-1 | VF-2 | VF-3 | VF-4 | VF-6 | VF-7 |
| Machine Power [kW] | 1.5 | 2.2 | 3 | 5.5 | 5.5 | 7.5 |
| Conveying Capacity [kg/h] | 400 | 600 | 1200 | 2500 | 3200 | 6000 |
Picture Photo:

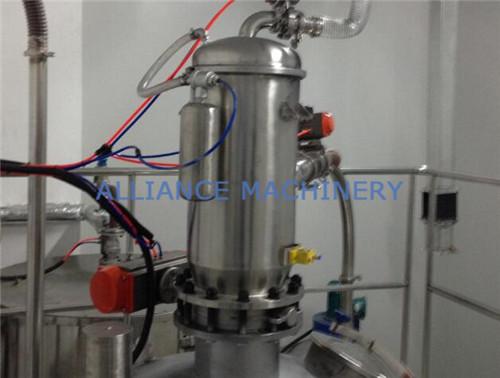

Installation reference
