RC 11.5-21.6KW Roller Compactor Pharmaceutical Granulation Equipments Horizontal Feed Continuous Processing

RC Roller Compactor

Description:

RC Roller Compactor is a high-efficiency granulating equipment, especially for thermosensitive and humidity sensitive products.

The two-stage mill sieves are 20~30 mesh sizes, granulation pass rate ≥ 80% (standard placebo of starch and sugar).

Fine powder content 8~10%.

Within 15 minutes to disassemble front parts for cleaning, which can be done without any special tool.

Dry granulation is easy to process and without a physical change to materials. It is widely used in the pharmaceutical industry, chemical, and foodstuff industries.

Features:

High automation, continuous processing.

Fine powder collected for recycling.

Through-the-wall installation.

Different roller patterns for the option.
Processing area and driving area reasonably isolated.
Front processing parts are easy to dismantle for cleaning.
Controlled dust release, no cross contamination.

Specifications:



Model	RCS40	RC70	RC100	RC200
Capacity [kg/h]	40	70	100	200
Output Particle Size [mesh]	15~60	15~60	15~60	15~60
Roller Pressure [t/cm²]	4	4	5	5
Power [kW]	11.5	13.5	18.5	21.6
Dimensions [mm]	1100x1000x1600	1200x1000x1880	1445x1400x1982	1600x1530x2100
Machine Weight [kg]	700	900	1100	2000

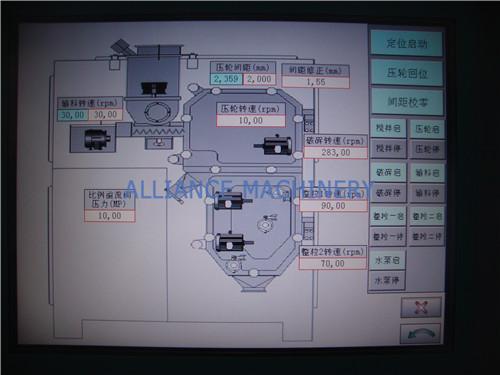

Product Picture:





Video Link:

https://vimeo.com/277229423
